MAG-SW

MAG-SW

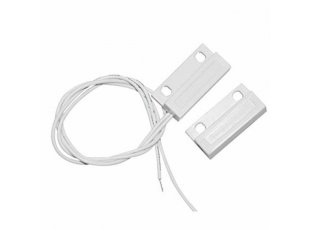

Magnetic Door Reed Switch with self adhesive tape
Price1.50 EUR
In stock
Two part Magnetic Door switch in white ABS plastic can alert when doors, windows or other appliances with moving parts close together or get apart. When each magnet piece comes within 20mm of each other they complete the circuit with the internal reed switches. Each Magnetic Door Switch set can accept a max voltage of up to 100V at 500mA. Additionally each set is housed in durable ABS plastic and, with self adhesive tape can easily mount to most surfaces.

FEATURES

  • Max voltage 100V
  • Max current 0.5A
  • Wire length: 300 mm
  • Switch Gap: 10 mm
  • Contact Mode: NO

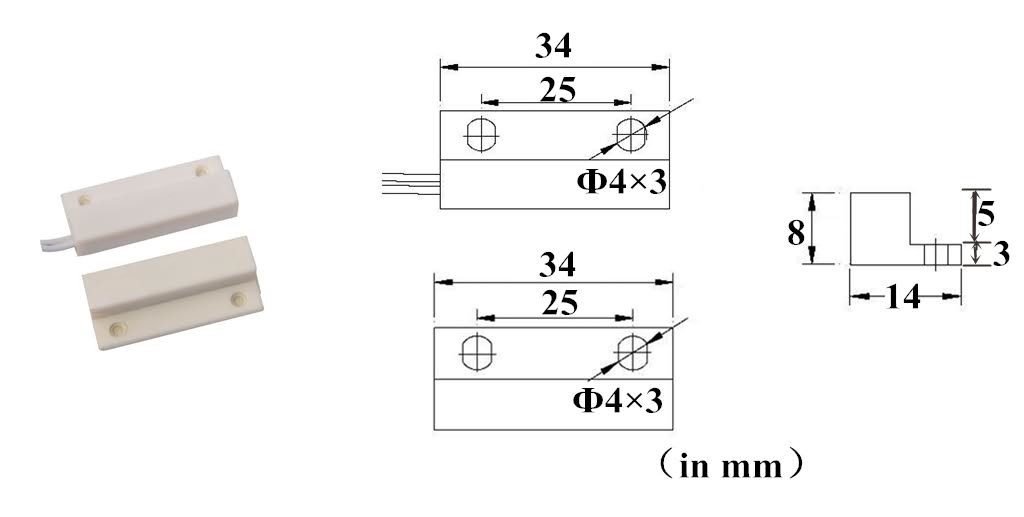

  • Dimension: 34 × 41 × 6.5 mm

DOCUMENTS
