SNS-TMP-DS18B20
Digital calibrated temperature sensor with 1-wire interface
Select Product Variant
- SNS-TMP-DS18B20-CHINA
- SNS-TMP-DS18B20-MAXIM
| Price | 1.20 EUR |
|---|---|
| 10 - 49 pcs | 1.14 EUR |
| 50 - 10000 pcs | 1.08 EUR |
DS18B20 is digital factory calibrated temperature sensor with 1-wire interface.
There are sensors with the originam Maxim IC and with China clone, the difference is that original Maxim IC temperaure error is +-0.5C while China clone is +-2C. Also the internal EEPROM of China clone allow only 10 write cycles.
There are sensors with the originam Maxim IC and with China clone, the difference is that original Maxim IC temperaure error is +-0.5C while China clone is +-2C. Also the internal EEPROM of China clone allow only 10 write cycles.
FEATURES
- Cable length 100 cm

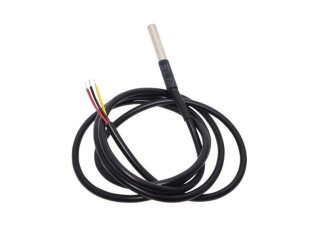

- Water proof encapsulated in stainless steel 6x50mm
- Power supply range: 3.0V to 5.5V
- Operating temperature range:-55°C to +125°C
- Accuracy over the range of -10°C to +85°C: ±0.5°C.
- Output leads: Yellow (DATA), Red (VCC), Black (GND)
