BLUETOOTH-SERIAL-HC-06

BLUETOOTH-SERIAL-HC-06
BLUETOOTH-SERIAL-HC-06 BLUETOOTH-SERIAL-HC-06

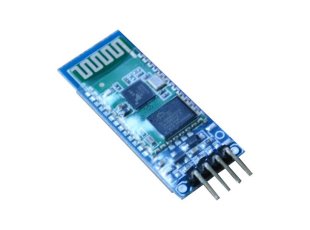

BLUETOOTH-SERIAL-HC-06 is popular easy to use Bluetooth to UART module
Price5.95 EUR
10 - 49 pcs5.36 EUR
50 - 10000 pcs4.76 EUR
In stock
It's very easy to add wireless serial connectivity for your device with this module. Examples for Arduino and other boards are available. Once you pair with other Bluetooth device you work like with normal UART to exchange data.

FEATURES

  • Bases at CSR BC04 Bluetooth technology.
  • with build-in 2.4GHz antenna
  • It’s at the Bluetooth class 2 power level.
  • Operating voltage 3.1V~4.2V
  • Operating current in pairing is in the range of 30~40mA.
  • Operating current in communication is 8mA.
  • Standard HCI Port (UART or USB)
  • USB Protocol : Full Speed USB1.1, Compliant With 2.0
  • Can be soldered on board.
  • Storage temperature range: -40 °C - 85°C
  • Operating temperature range: -25 °C - +75°C
  • Dimensions 27mm×13mm×2mm
