AVR-P8-10MHZ

AVR-P8-10MHZ

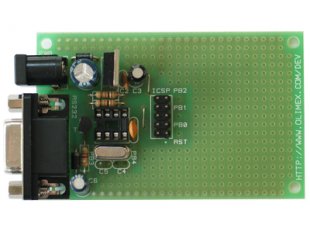

AVR microcontroller prototype board for 8 pin devices with STKxxx compatible 10 pin ICSP connector

This item is OBSOLETE

FEATURES

  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 81 x 58 mm (3.2 x 1.7 ")
  • ICSP 5x2 pin connector for in-circuit programming with AVR-PG1B or AVR-PG2B
  • Voltage regulator +5V, 78L05 and filtering capacitors
  • Quartz crystal oscillator circuit 4/6/10MHz
  • DIL8 microcontroller socket
  • RS232 DB9 female connector
  • RS232 interface circuit
  • Extension slot on every uC pin
  • 4 pcs mounting holes 3.3 mm (0.13")
  • Grid 100 mils
  • GND bus
  • Vcc bus
