AVR microcontroller prototype board with USB, JTAG and STKxx compatible 10 pin ICSP

This item is OBSOLETE


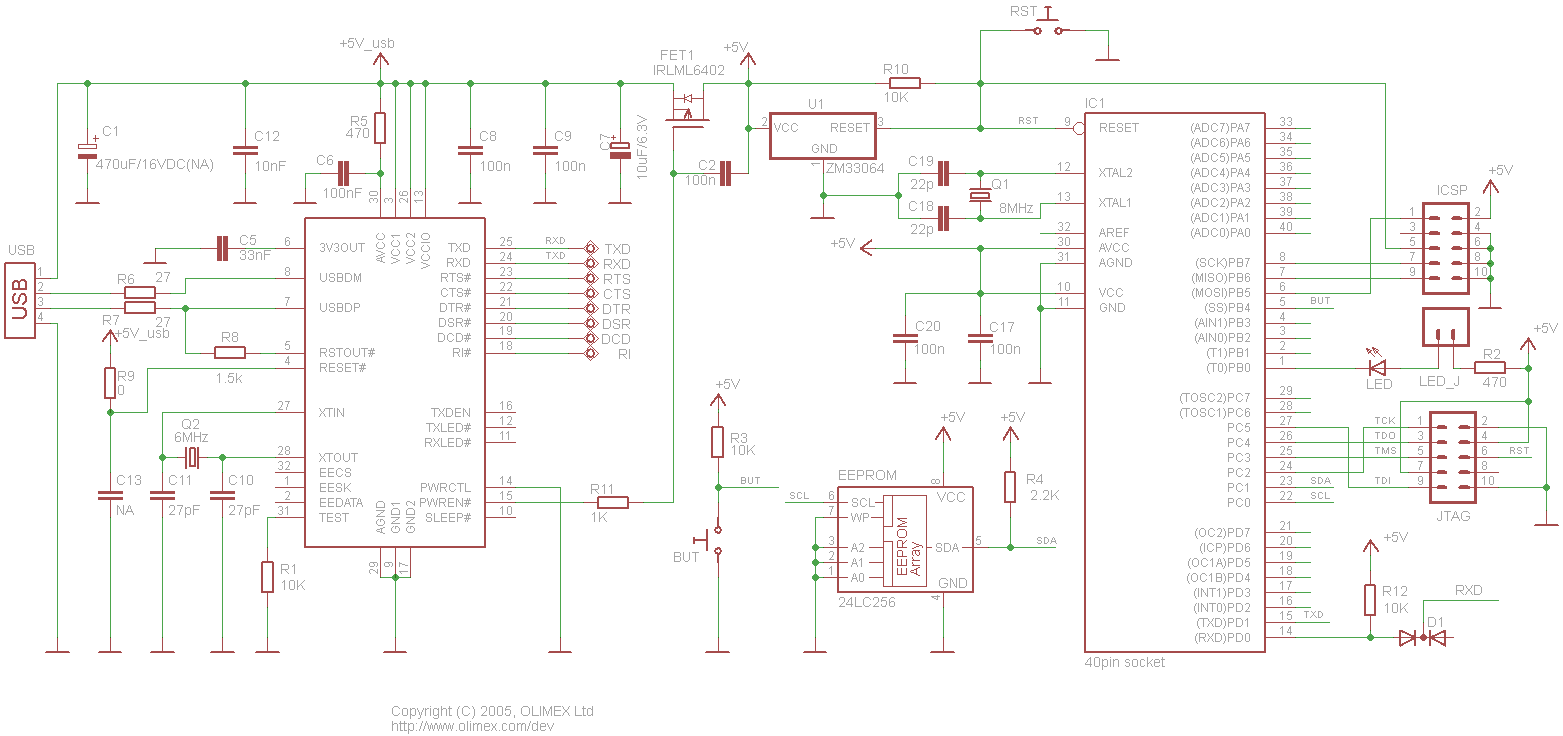

  • Supports all devices which are pin to pin compatible with AT90S8535 AVR microcontrollers
  • ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
  • JTAG port 5x2 for in-circuit debugging/programming with AVR-JTAG and AVR-JTAG-USB (ATJTAGICE)
  • USB to RS232 FT232 converter
  • I2C EEPROM socket
  • Takes power from USB no need for external adapter
  • Power supply filtering capacitors
  • Quartz crystall oscilator circuit 8Mhz
  • Reset IC ZM33064
  • Reset button
  • General purpose push button
  • Status LED connected to PB0 via removable jumper
  • DIL40 microcontroller socket
  • Extension pin headers for each uC pin
  • Four mounting holes 3.3 mm (0.13")
  • Grid 100 mils
  • GND bus
  • Vcc bus
  • FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions 100x80 mm (3.9x3.15")



  • AVR-P40-USB + ATMega16 blink LED demo code (C source and HEX)
  • AVR-P40-USB + ATMega16 button demo code (C source and HEX)
  • AVR-P40-USB + ATMega16 UART demo code (C source and HEX)
