AVR-M16L

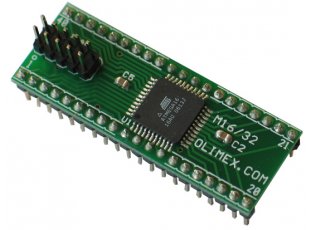

AT Mega16L header board with JTAG connector
This item is OBSOLETE
FEATURES
- JTAG 5x2 pin connector for in-circuit programming and debugging with AVR-JTAG-L or AVR-JTAG-USB
- Pin to pin compatible to AT90S8535 and may be used with AVR-P40-8535 prototype boards
- ATMega16L-08AC avr microcontroller
- Power supply filtering capacitors
- Extension pin headers for each uC pin
- FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
- Dimensions 51x19 mm (2"x0.73")
HARDWARE
- AVR-M16L Schematic
- AVR JTAG connector (top view)
