LPC-H2106

LPC-H2106

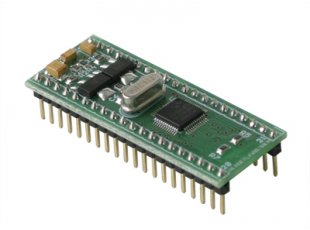

LPC2106 ARM7 microcontroller header board in DIL40 format
Price29.95 EUR
10 - 49 pcs26.96 EUR
50 - 10000 pcs23.96 EUR
In Stock

FEATURES

  • MCU: LPC2106 16/32 bit ARM7TDMI-S™ with 128K Bytes Program Flash, 64K Bytes RAM, RTC, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • DIL40 housing, so user can use existing sockets on prototype boards
  • Two on board voltage regulators 1.8V and 3.3V with up to 800mA current
  • Single power supply: +5-9VDC required
  • RESET, DBGSEL, RTCK pullup resistors
  • 14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • Possibility for external clock-in
  • Power supply filtering capacitor
  • Extension headers for P0.0-P0.31, DBGSEL, RST, RTCK, XIN, +3.3V_OUT, GND
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 51x20 mm (2.0x0.75")
  • Space between the pin rows: 15.24 mm (0.6")
