LPC-H1114

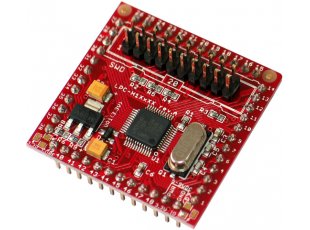

Development prototype header breakout board for LPC1114 CORTEX M0 ARM microcontroller
This item is OBSOLETE
FEATURES
- Power supply circuit, 5VDC to 9VDC input voltage
- Power-on led
- ARM SWD (Serial Wire Debug) debug interface with male header
- 4 male headers at 0.1" step exposing all processor pins
- FR-4, 1.5 mm, soldermask, component print
- Dimensions: (1.5 x 1.5)" ~ (38.1 x 38.1)mm
DOCUMENTS
HARDWARE
- LPC-H1114 schematic
- ARM JTAG connector (TOP view)
