MOD-WIFI-RTL8188ETV

MOD-WIFI-RTL8188ETV
MOD-WIFI-RTL8188ETV MOD-WIFI-RTL8188ETV

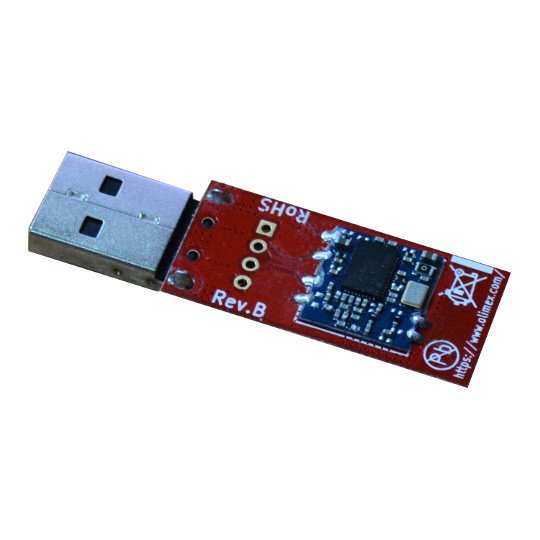

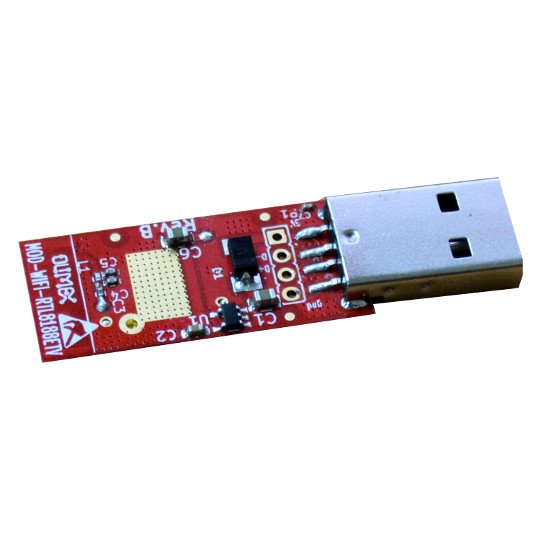

USB WIFI adapter with Realtek RTL8188ETV

Select Product Variant

  • MOD-WIFI-RTL8188
  • MOD-WIFI-RTL8188ETV
Price4.95 EUR
10 - 49 pcs4.70 EUR
50 - 10000 pcs4.46 EUR
In Stock

FEATURES

  • Features an embedded module RL-UM12BS-8188ETV with RTL8188ETV
  • Operates in 2.4 GHz frequency bands
  • 1x1 MIMO technology improves effective throughput and range over
  • Compliant with 802.11 n/g/b standards
  • FCC approved since 2013-05-14
  • Data rates: up to 150Mbps
  • 802.11e-compatible bursting and I standards
  • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
  • WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
  • Standard USB type A connector
  • On-board PCB antenna
  • 4 test pads for easy tracking the supply, d-, d+, and GND
  • PCB: FR-4, 1.00 mm (0,039"), solder mask, silkscreen component print
  • Dimensions: 35x15 mm (1.38x0.60")

DOCUMENTS

HARDWARE

SOFTWARE

  • RTL8188ETV and RTL8188EU use the same drivers; drivers are usually provided by Realtek.

FAQ

  • I see that the board has a built-in PCB antenna. However, I want to extend the range of the module. How can I connect external antenna?
  • A standard connector for an external antenna is not provided by design. You would need to perform complex hardware modifications - cut the PCB antenna and then use the ANT signal line. Refer to the schematic.
  • I want to use this module with one of your Linux-enabled boards. How can I set the settings for my network in your official image?
  • All settings are stored in "/etc/network/interfaces". Just open the file with a text editor, for example, type "nano /etc/network/interfaces".  Edit it according to your WIFI settings and save the file.
  • I have some problems with this module and your Linux-enabled boards. As soon as I try to start the network, the board hangs or restarts. How can I fix the problem?
  • Try the following solution: first create a file "/etc/modprobe.d/blacklist-rtlcommon.conf" with
    touch /etc/modprobe.d/blacklist-rtlcommon.conf
    then access it for editing with command "nano /etc/modprobe.d/blacklist-rtlcommon.conf". Inside the file insert these three lines:
    install rtl8192cu /bin/false
    install rtl8192c_common /bin/false
    install rtlwifi /bin/false
    Save and close the file (Ctrl+X; Y; Enter). Finally, reboot the board with "reboot" command.
