RPi5-LCD3.5-320x480

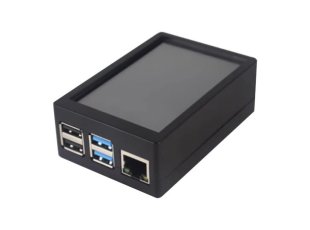

Raspberry Pi 5 LCD 3.5 inch 320x480 pixels display with touch screen panel and box with active cooler
| Price | 29.95 EUR |
|---|
RPi5-LCD3.5-320x480 is add on LCD 3.5" which plugs in the GPIO connector.
The LCD is with ILI9486 driver and work via SPI.
The LCD is with ILI9486 driver and work via SPI.
FEATURES
- LCD 3.5" TFT display
- resolution 480x320 pixels
- LCD driver ILI9486
- Touch panel driver XPT2046
- Plug and play on RP5 GPIOs
- uses SPI interface 125Mhz
- Consumption 0.16A @ 5V
- Operating Temperature -20C + 60C
- Active cooler included
- Plastic box
- LCD display area 73x49 mm
- Plastic box dimensions: 90x60x35
DOCUMENTS
- RPi5-LCD3.5-320x480 EU declaration of conformity
- RPi5-LCD3.5-320x480 UKCA declaration of conformity
