RPi-CM5-8GB

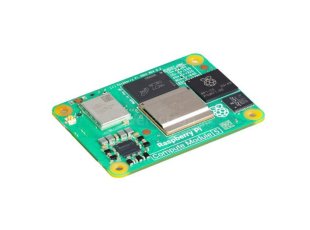

Raspberry Pi CM5 Compute module SOM 8GB RAM
| Price | 87.00 EUR |
|---|
FEATURES
- BCM2712 quad-core 64-bit Arm Cortex-A76 @ 2.4GHz
- 8GB LPDDR4
- Gigabit Ethernet PHY supporting IEEE 1588
- 1 × PCIe x1 root complex, Gen 2 (5Gbps)
- 1 × USB 2.0 port (high speed)
- 2 × USB 3.0 ports, simultaneous 5Gbps operation
- Up to 30 × GPIO supporting either 1.8V or 3.3V
- Up to 5 × UART
- Up to 5 × I2C
- Up to 5 × SPI
- 1 × SDIO interface
- 1 × DPI (parallel RGB display)
- 1 × I2S
- Up to 4 × PWM channels
- Up to 3 × GPCLK outputs
- 2 × HDMI 2.0 ports
- 2 × 4-lane MIPI ports supporting DSI and CSI-2
- 4Kp60 HEVC decoder
- OpenGL ES 3.1 graphics, Vulkan 1.2
- 4 × M2.5 mounting holes
- Dimensions: 55x40 mm
