RP2350pc

RP2350pc
RP2350pc RP2350pc RP2350pc

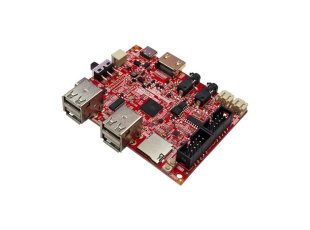

RP2350B all in one computer with 16MB Flash, 8MB PSRAM, DVI / HDMI display 4 USB hosts Stereo Audio and UEXT connector

Select Product Variant

  • BOX-RP2350pc
  • RP2350pc
Price24.95 EUR
In Stock
RP2350pc is all in one computer with 16MB SPI Flash, 8MB PSRAM, 4x USB2.0 hosts, Stereo Audio codec and Amplifier, DVI/HDMI output, Lipo battery charger, UEXT connector, USB-C power supply connector.
With the Reload emulator it can emulate Apple ][, Apple ][e, Oric-Atmos, Pravetz, Puldin 8-bit old computers.
You can play all thousands of Total Replay games on it.
The USB host support USB Flash drives, USB Game pads (USB-GAMEPAD emlates Apple Joystick), USB Keyboard.

FEATURES

  • RP2350B Dual Arm Cortex-M33 or dual Hazard3 RISC-V processors @ 150MHz
  • 520 KB on-chip SRAM
  • 16MB SPI Flash
  • 8MB of PSRAM
  • DVI/HDMI output
  • x4 USB hosts
  • Audio codec with stereo audio amplifier
  • PWM Stereo Audio generation
  • Audio 3.5mm Line-in
  • Audio 3.5mm headphones connector
  • Two JST2.0 connectors for left and right speaker
  • USB-C connector for power supply
  • USB-C connector for programming
  • Two UEXT connectors
  • Power switch
  • RP2350B reset and programming bootloader button
  • Four mounting holes 3.3mm diameter
  • Lipo battery charger and JST 2.0 connector
  • MicroSD card
  • Dimensions: (85 x 65)mm

DOCUMENTS

  • RP2350pc user manual
  • RP2350pc EU declaration of conformity
  • RP2350pc UKCA declaration of conformity

HARDWARE

SOFTWARE
