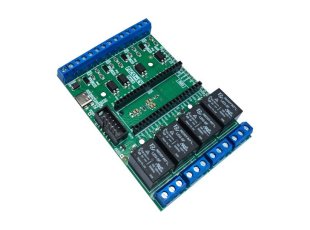

PICO-EVB
Evaluation board for Raspberry PICO with four optoisolated inputs and four Relays 15V/240VAC UEXT connector USB-C power supply
| Price | 14.95 EUR |
|---|---|
| 10 - 49 pcs | 14.20 EUR |
| 50 - 10000 pcs | 13.46 EUR |
PICO-EVB can be used with Raspberry PICO, PICO2, PICO-W and PICO2-W and Olimex's variant PICO30.
It allow you to make simple high voltage automation.
The relays are Form 1C with normal close and normal open contatcs. The signals are available on screw terminals.
Each relay have status LED.
Each Input can operate with two ranges: 3.3-30VDC or 110-220VAC.
Each input have status LED.
It allow you to make simple high voltage automation.
The relays are Form 1C with normal close and normal open contatcs. The signals are available on screw terminals.
Each relay have status LED.
Each Input can operate with two ranges: 3.3-30VDC or 110-220VAC.
Each input have status LED.
FEATURES
- Raspberry Pi PICO 40 pin connector
- Four relays 15V 240VAC
- Four status LEDs for the Relays
- Four optoisolated inputs which can take 3.3-30VDC or 110-220VAC
- Four status LEDs for the inputs
- External power supply by screw connector, USB-C or PICO
- UEXT connector with I2C, UART and SPI signals
- Industrial grade -45+85C components.
- Dimensions 100x70mm
DOCUMENTS
- PICO-EVB user manual
- PICO-EVB EU declaration of conformity
- PICO-EVB UKCA declaration of conformity
