WCH-LinkW

WCH-LinkW

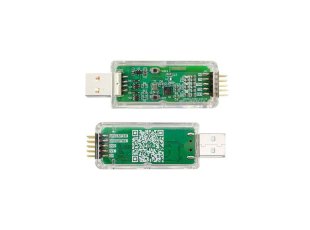

WCH-LinkW wireless debugger programmer for RISC-V and ARM microcontrollers
Price14.95 EUR
In Stock

Supported chips:

- CH643/CH32X035_X034_X033/CH32L103/CH32V003/CH32V002_004_005_006_007/CH32V317/CH32M007
- CH32V10x/CH32V20x/CH32V30X
- CH32F10x/CH32F20x/CH579/friendly chips that support SWD interface
- Friendly chips that support JTAG interface

Wireless programming and debugging option with two WCH-LinkW - one set as master and attatched to PC and the other set as slave and attached to target.

FEATURES

  • RISC-V mode
  • ARM-SWD mode - WINUSB device
  • ARM-JTAG mode - WINUSB device
  • Serial Port baudrate from 1200 to 921600 bps
  • ModeS key to switch modes
  • Controllable 3.3V/5V power output
  • Wireless interface (requires two WCH-LinkW)
