DEvelopment prototype board for 18 pin PIC microcontrollers
Price4.95 EUR
10 - 49 pcs4.46 EUR
50 - 10000 pcs3.96 EUR
In Stock

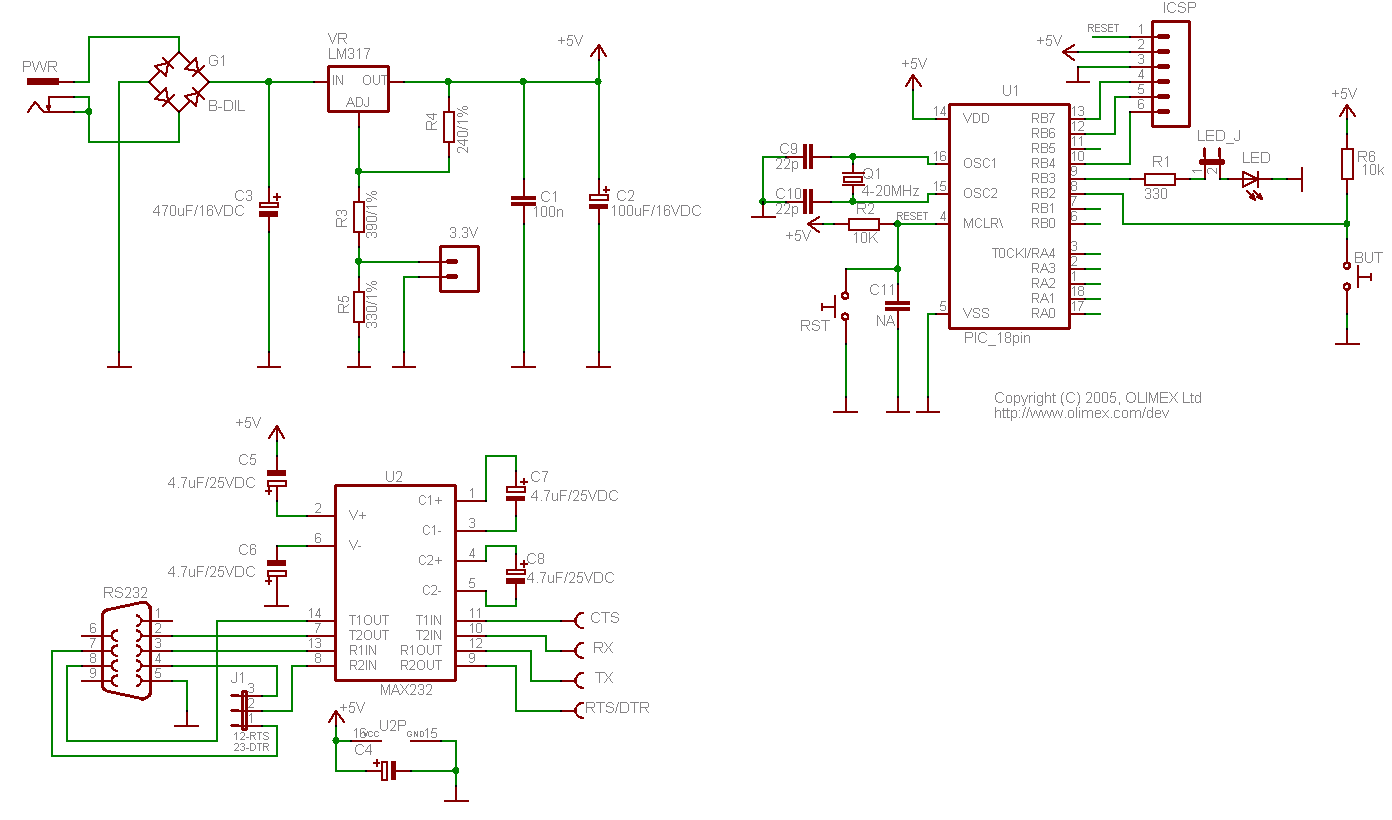

With this board you can develop and prototype with any of Microchip's 18 pin PIC microcontrollers. The RS232 driver on board allows an easy connection with a PC or other embedded hardware. The board has a User button and a status LED. The bridge rectifier allows this board to be powered with both AC and DC power supply adapters. PIC-P18 supports both 3V low power and normal 5V operation.



FEATURES

  • ICSP/ICD connector for programming with PIC-MCP-USB and PIC-MCP or PIC-PG1,PIC-PG2, PIC-PG3, PIC-PG4 programmers and debugging with PIC-ICD2, PIC-ICD-POCKET, PIC-ICD2-TINY(* for the PICs with ICD support)
  • RS232 Tx, Rx interface with MAX232 IC on socket
  • DIL18 microcontroller socket
  • Quartz crystal 20Mhz on socket
  • LED to RB3 through jumper
  • User button on RB2 port
  • Reset button
  • Power plug-in jack
  • Selectable +3.3V / +5V power supply voltage regulator
  • Extension slot on every uC pin
  • Gird 100 mils
  • GND bus
  • Vcc bus
  • Four mounting holes 3.3 mm (0.13")
  • FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print
  • Dimensions: (100 x 80)mm ~ (3.9 x 3.15)"

SOFTWARE

  • Blink LED for PIC16F628 demo code (C source and HEX)
  • Button read for PIC16F628 demo code (C source and HEX)
  • RS232 read/write for PIC16F628 demo code (C source and HEX)
