MSP430-PIR

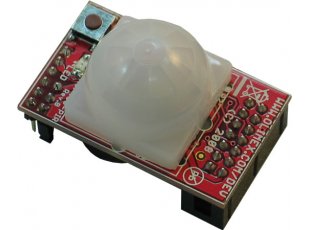

PIR sensor with MSP430F2013 microcontroller
| Price | 5.95 EUR |
|---|---|
| 10 - 49 pcs | 5.65 EUR |
| 50 - 10000 pcs | 5.36 EUR |
FEATURES
- MSP430F2013 microcontroller
- Low power PIR sensor
- Status LEDs
- CR2032 battery holder
- JTAG connector
- Supports both Olimex and TI SBW layout
- Dimensions: 42x26 mm (1.6x1.0")
DOCUMENTS
- MSP430-PIR User Manual
- SLAA283 Application note from Texas Instruments which have been used to create MSP430-PIR, there are a few differences between the TI schematic and ours - our schematic support both the TI and the OLIMEX SBW JTAG layout; we ship the boards with SMT jumpers which are shortened for the OLIMEX JTAG layout so if you use the TI JTAG, you should move the jumpers to TI position
- MSP430-PIR European Declaration of Conformity
- MSP430-PIR UKCA Declaration of Conformity
HARDWARE
SOFTWARE
- SLAA283 TI application note source codes IAR EW-MSP430 4.41 example
