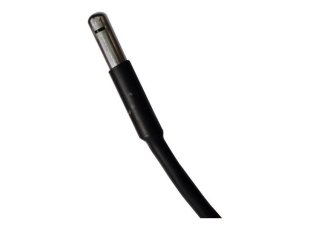

SNS-SHTC3F
Low power Precise Temerature and Humidity sensor encapsulated in metal can
| Price | 9.95 EUR |
|---|
SND-SHTC3F is based on Sensirion SHTC3 sensor with i2C interface, temperature measurement accuracy of 0.2C and Humidity measurement accuracy 2%.
Low power, I2C interface and 60 cm cable. Cable colors: Brown - Vcc, Black - GND, Blue - SCL, Yellow - SDA.
Compared to SHT30 it is lower power and operates at lower voltages: 1.62-3.6V versa SHT30 which operates from 2.4-5.0V
Low power, I2C interface and 60 cm cable. Cable colors: Brown - Vcc, Black - GND, Blue - SCL, Yellow - SDA.
Compared to SHT30 it is lower power and operates at lower voltages: 1.62-3.6V versa SHT30 which operates from 2.4-5.0V
FEATURES
- Supply voltage 1.62-3.6V
- Average current 4.9uA if measure once per second
- Maximum consumption 900uA
- Operating temperature -40 to +125 °C
- Temperature measurement accuracy: 0.2C
- Temperature change response time: 2s
- Operating humidity: 0-100%
- Humidity measurement accuracy 2%
- Humidity change response time: 8s
- SCL clock up to 1Mhz
- I2C address 0x70
- Cable 60 cm
- Metal can encapsulation
- Sensor diameter 6 mm
- Sensor Length 50mm
- Cable length: 60 cm
