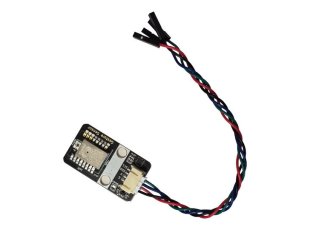

SNS-GESTURE
Gesture Sensor with I2C interface for Arduino and MicroPython
| Price | 10.95 EUR |
|---|
SNS-GESTURE is easy to use sensor with I2C interface. It allow hand gesture interface to be add to your next project.
SNS-GESTURE have Four wires: Red +5V, Black GND, Blue SDA, Green SCL.
Note that SNS-GESTURE require 5V for operation and can't be connected directly to UEXT which is 3.3V interface.
You can use UEXT-3TO5V to connect this sensor to UEXT.
SNS-GESTURE have Four wires: Red +5V, Black GND, Blue SDA, Green SCL.
Note that SNS-GESTURE require 5V for operation and can't be connected directly to UEXT which is 3.3V interface.
You can use UEXT-3TO5V to connect this sensor to UEXT.
FEATURES
- Power supply 5V
- I2C interface
- Four wires: Red, Black, Blue, GReen
- Two mount holes 5mm
- Dimensions: 40x23mm
DOCUMENTS
- SNS-GESTURE user manual
- SNS-GESTURE EU declaration of conformity
- SNS-GESTURE UKCA declaration of conformity
