SNS-CURRENT-CT013-100A

SNS-CURRENT-CT013-100A
SNS-CURRENT-CT013-100A SNS-CURRENT-CT013-100A SNS-CURRENT-CT013-100A

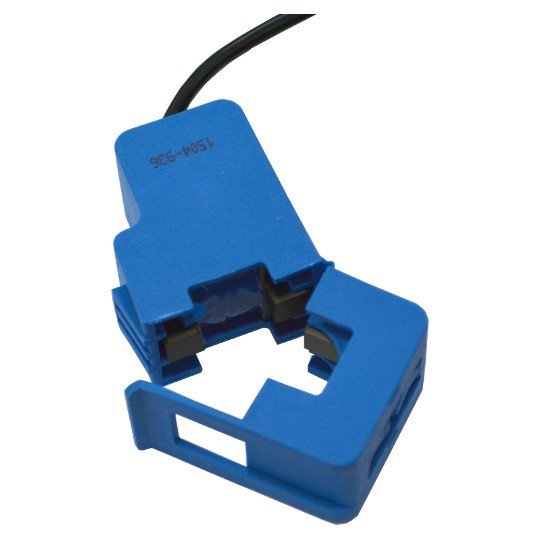

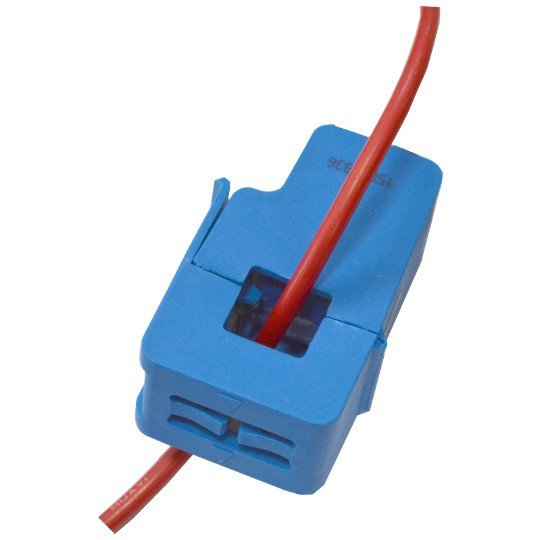

SNS-CURRENT-CT013-100A is split core clamp current transformer which is good for sensing currents up to 100A
Price9.95 EUR
10 - 49 pcs8.96 EUR
50 - 10000 pcs7.96 EUR
In stock
SNS-CURRENT-CT013-100A is suitable for the current measuring, Monitoring and protection of AC motor, Lighring equipment , Air compressor and etc.

FEATURES

  • Dielectric strength 1000VAC/MIN
  • Rated input current:0-100A
  • Output: 0-50mA or 0-1V
  • Opening size: 13mm×13mm
  • Non-linearity±3% (10%-120% rated input current)

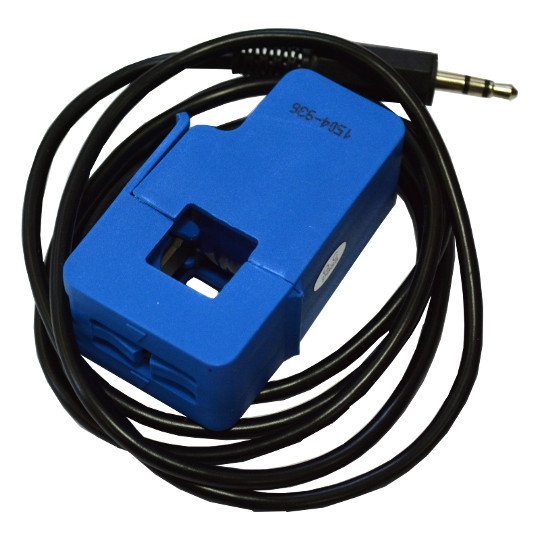

  • 1.5m leading wire, Φ3.5 three core plug standard output
  • Working temperature: -25C+70C
  • Fire resistance propety: in accordance with UL94-VO
