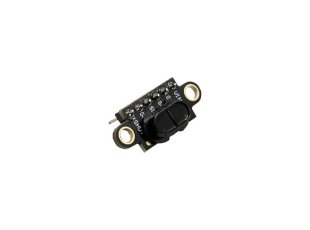

BB-VL53L1X
VL53L1X Fast and accurate ToF long distance up to 4m measurement sensor with mm accuracy
| Price | 9.95 EUR |
|---|---|
| 10 - 49 pcs | 9.45 EUR |
| 50 - 10000 pcs | 8.96 EUR |
VL53L1X is Fast and accurate ToF long distance up to 4m measurement sensor with mm accuracy. It uses 940 nm invisible laser emitter (Class 1) and have sensor array. The digital processing achieves milimeter accuracy with measuring range up to 4 meters. This sensor is great for human detection, camera focusing, robots, drones, smart shelves, IoT, vending machines, 1D gesture recognition.
This sensor comes with special filter which reduce noise and improve accuracy (most similar senors come with no filter).
BB-VL53L1X comes with pre-soldred headers and no soldering is needed.
This sensor comes with special filter which reduce noise and improve accuracy (most similar senors come with no filter).
BB-VL53L1X comes with pre-soldred headers and no soldering is needed.
FEATURES
- Operating voltage 3.3-5.0V
- Measurement distance up to 4 meters
- Accuracy 1 mm
- Fast measurements up to 50 times per second
- Typical full field of view (FoV) 27°
- Special filter for noise reduction
- Soldered headers, ready for breadboarding
- Dimensions: 25x10mm
DOCUMENTS
- BB-VL53L1X user manual
- VL53L1X datasheet
- VL53L1X user manual
SOFTWARE
- Arduino library
- Micropython library
- ESPHome component
