BB-LVL-SHIFT
Breadboard friendly two line level shifter
| Price | 3.95 EUR |
|---|---|
| 10 - 49 pcs | 3.75 EUR |
| 50 - 10000 pcs | 3.56 EUR |

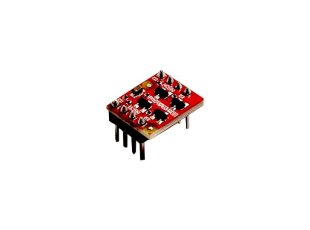

BB-LVL-SHIFT provides bi-directional level shifting between two lines from 1.8 to 5.5V. It's ideal for I2C and UART signals interfacing between product which work on different voltage levels.
No soldering is required the header pins are soldered ready to be plug to breaboard or jumper wires.
For proper operation you need to connect not only the signals lines but also ground and power supply lines.
No soldering is required the header pins are soldered ready to be plug to breaboard or jumper wires.
For proper operation you need to connect not only the signals lines but also ground and power supply lines.
FEATURES
- Two lines bi-directional level shifting
- Signal speed up to 1Mbps
- Dimensions: 15 x 13 mm
DOCUMENTS
- BB-LVL-SHIFT EU declaration of conformity
- BB-LVL-SHIFT UKCA declaration of conformity
HARDWARE
- BB-LVL-SHIFT schematic in pdf format
- BB-LVL-SHIFT KiCad source files
