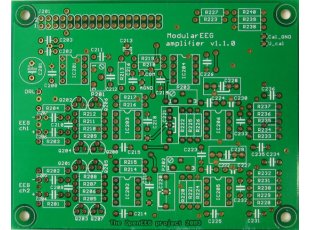

Technical production details of double side PCB prototypes DOUBLE SIDE DSS/DSQ PCB PANEL SPECIFICATIONS
  • Panel sizes:
    DSS 160x100 mm (6.3 x 3.9"),
    DSQ 320x200 mm (12.6 x 7.8")
  • Laminate type:
    FR-4
  • Laminate thickness:
    0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm (standard)
  • Laminate base copper thickness:
    18/18 um (1/2 oz), 35/35 um (1 oz) (standard)
  • Soldermask:
    double side liquid photoimagable (LPI) green color
  • Component print:
    single side white color ink
  • Minimum tracks and spaces:
    0,203 mm (0,008")
  • Standard drill tools:
    0,7 mm (0,028"), 0,9 mm (0,035"), 1.0 mm (0,039"), 1.1 mm (0,043"), 1.3 mm (0,051"), 1.5 mm (0,059"), 2.1 mm (0,083"), 3.3 mm (0,13")
  • Number of drill holes:
    up to 500 for DSS, up to 2000 for DSQ
  • PCB finish:
    immersion gold ENIG ROHS compliant
  • De-panelization:
    cut-to-border only in rectangle shapes
  • Turnaround time:
    3-5 WORKING DAYS
