INTRODUCTION:

TMS320F28027 from the Piccolo™ family of microcontrollers provides the power of the C28x™ core coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, as well as providing a high level of analog integration.An internal voltage regulator allows for single rail operation. Enhancements have been made to the HRPWM module to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead/latency.

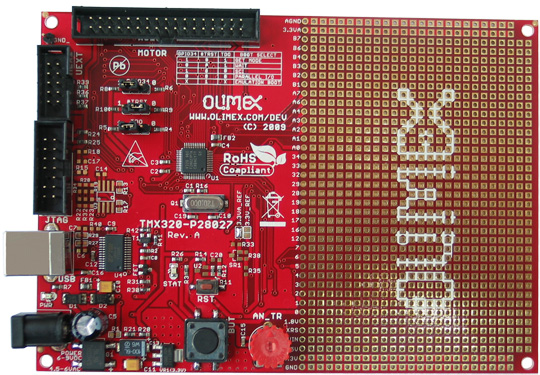

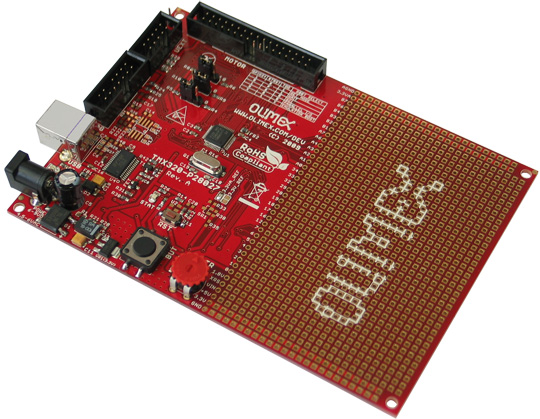

FEATURES:

• MCU: TMS320F28027 64KB Flash, 12 KB RAM, 4.6 Msps 12 bit ADCs, ePWM, eCAP, SPI, RS232, I2C
• JTAG connector
• USB-to-RS232 convertor allow easy to power board and to connect to notebooks and decent computers without RS232 port
• UEXT connector with SPI, RS232, I2C for connection to other Olimex modules as MOD-NRF24Lx, MOD-MP3, etc.
• MOTOR control connector (for add on modules with ADC, PWM, Interrupt signals available)
• User button
• Trimmer potentiometer connected to Analog input
• power supply LED
• user status LED
• RST button
• external power supply jack for AC or DC power supply
• Voltage regulator + power supply filtering capacitor
• extension headers for each uC pin
• prototype area with 0.1" step, Vcc + GND bus

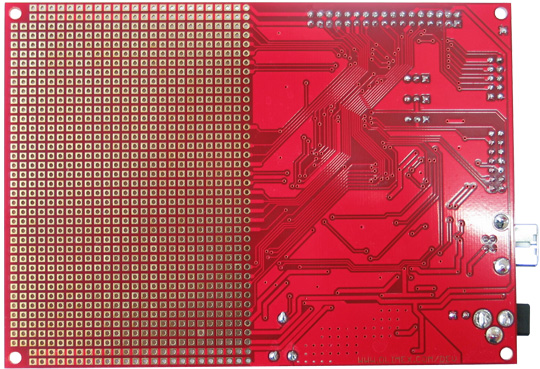

• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 100x80 mm (3.9x3.15")

DOCUMENTS:

• TMS320-P28027.pdf - users manual
• Code Composer Studio tutorial how to use TMS320-P28027 board

HARDWARE:

• TMS320-P28027 chematic
• TMS320-JTAG connector layout (top view)


SOFTWARE:

• Blink LED C Source and CCS project files for CCS4

ORDERING CODES:
		TMS320-P28027 completely assembled and tested with TMS320F28027 microcontroller
