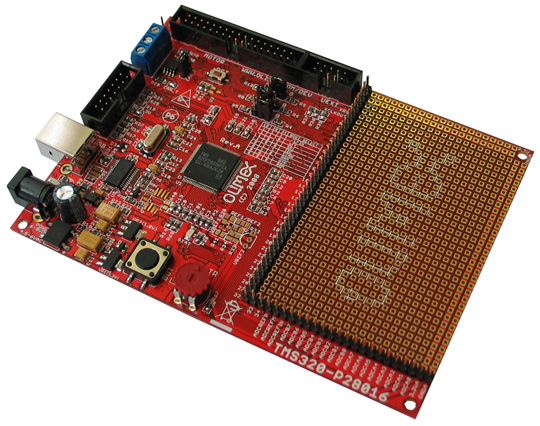

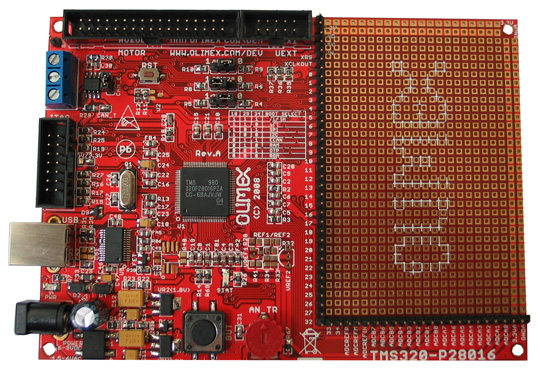

INTRODUCTION:

TMS320F28016 is known to be the world's lowest cost 32-bit Real Time Microcontroller (DSP) with build in CAN and cost only US $3.60 / 1000 pcs quantity. This is very good bargain for 32-bit core running at 60 Mhz, delivering 60 MMACS, 32KB Flash, 12 KB RAM, 8 channel PWM 6 of them with enhanced resolution of 150 ps(!), 2 x 8 channels 3.75 MPSP 12-bit ADCs, CAN, RS232, SPI, I2C.

FEATURES:

• MCU: TMS320F28016 32KB Flash, 12 KB RAM, 3.75 MPSP 2 x 8 channel ADCs, 8 PWM, CAN, SPI, RS232, I2C
• JTAG connector
• USB-to-RS232 convertor allow easy to power board and to connect to notebooks and decent computers without RS232 port
• CAN driver and connector
• UEXT connector with SPI, RS232, I2C for connection to other Olimex modules as MOD-NRF24Lx, MOD-MP3, etc.
• MOTOR control connector (for add on modules with ADC, PWM, Interrupt signals available)
• User button
• Trimmer potentiometer connected to Analog input
• power supply LED
• user status LED
• RST button
• external power supply jack for AC or DC power supply
• Voltage regulator + power supply filtering capacitor
• extension headers for each uC pin
• prototype area with 0.1" step, Vcc + GND bus

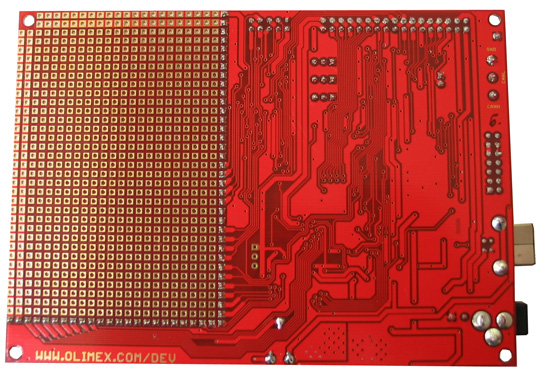

• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 100x80 mm (3.9x3.15")

DOCUMENTS:

• TMS320-P28016.pdf - users manual
• Code Composer Studio tutorial how to use TMS320-P28016 board
• Flash programming on TMS320-P28016

HARDWARE:

• TMS320-P28016 Rev. A schematic
• TMS320-JTAG connector layout (top view)


SOFTWARE:

• Blink LED C Source and CCS project files
• RS232 echo back C Source and CCS project files
• ADC read C source and CCS project files
• Flash programming blink LED
• CAN simple message exachange C source and CCS project files (not implemented yet)
• SPI control of NOKIA 6610 color LCD module (MOD-N6610) C source and CCS project files (not implemented yet)

ORDERING CODES:
		TMS320-P28016 completely assembled and tested with TMS320F28016 microcontroller
