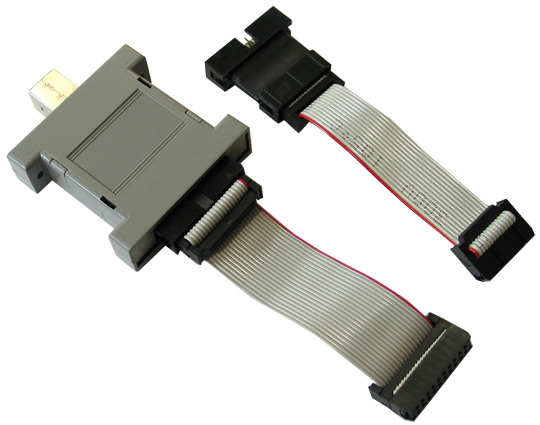

TMS320-JTAG-USB XDS100 - THE WORLD'S LOWEST COST DSP USB JTAG FOR PROGRAMMING AND EMULATION SOLUTION

OBSOLETE now replaced by the HIGH SPEED USB version TMS320-XDS100-V2

FEATURES

• TMS320-JTAG-USB hardware is designed to utilize the XDS100 software
• program all TMS320F C28xx flash 32-bit Real Time Microcontrollers (DSP), not XDS510 compatible, but have own CCS 3.30 drivers and support
• supports all members of C2800 family C54/55x and C674x (more to be implemented in future)
• uses standard 0.1" 2x7 pin and 2x10 pin JTAG connector
• no need for external power supply, all power is taken from USB and the target
• compatible with Code Composer Studio 3.30 software for programming, real time emulation, debugging, step by step program execution, breakpoints, memory dump etc everything all high priced emulators do
• dimensions 50x40 mm (2x1.6") + 20 cm (8") cable

DOCUMENTS:

• TMS320-JTAG-USB How to use guide

HARDWARE:

• TMS320-JTAG-USB 2x7 and 2x10 JTAG connector layout (top view)

SOFTWARE:

• Code Composer Studio 3.30 - download and register from Texas Instruments web site 120 days evaluation version from here
• TMS320-JTAG-USB CCS patch - add support for TMS320-JTAG-USB to CCS 3.xx

ORDERING CODES:
		TSM320-JTAG-USB completely assembled and tested
