STR-H711 HEADER BOARD FOR STR711 ARM7TDMI-S MICROCONTROLLER

FEATURES:

• MCU: STR711FR2T6 16/32 bit ARM7TDMI™ with 256K Bytes Program Flash, 64K Bytes RAM, USB 2.0, RTC, 12 bit ADC, 4x UARTs, 2x I2C,2x SPI, 5x 32bit TIMERS, 2x PWM, 2x CCR, WDT, up to 50MHz operation
• standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
• perfect solution for developing USB peripherials
• USB connector
• RESET circuit
• RESET button
• status LED
• power supply LED
• on board voltage regulator 3.3V with up to 800mA current
  single power supply: takes power from USB port or extension connector pin
• 4 Mhz crystal oscillator
• 32768 Hz crystal and RTC backup battery connector
• extension headers for all uC ports
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 50 x 34mm (2 x 1.3")
• Distance between the exntension connectors: 25.4 mm (1")


• STR-H711 extension port assignments

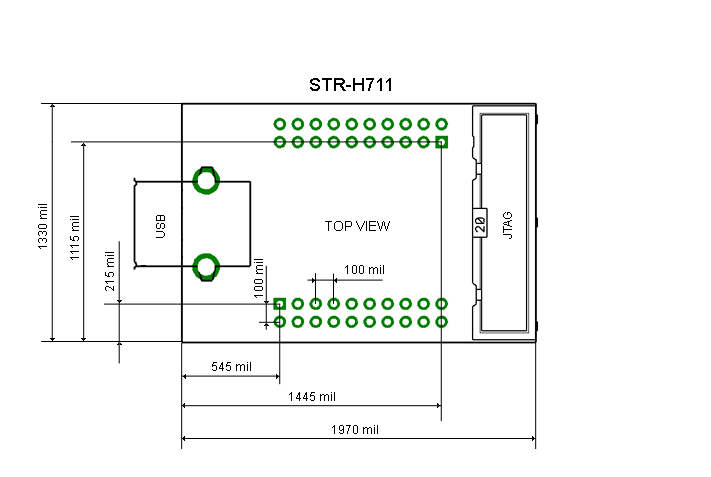

• STR-H711 dimensions
• STR-H711.pdf

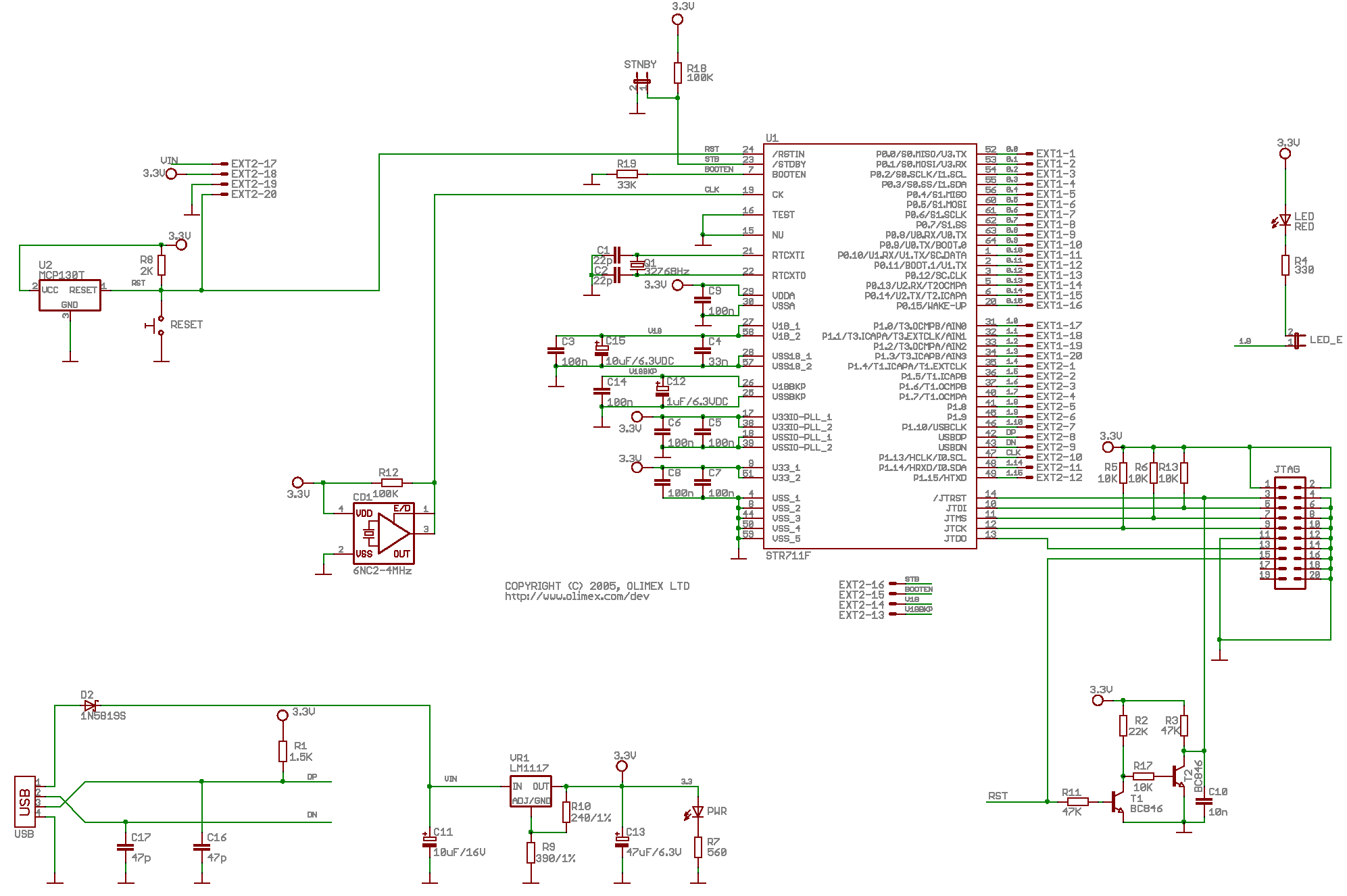

• STR-H711 schematic
• JTAG connector (top view)

• Blinking LED
• Sample mouse driver with STR711
• UART routines
• SD/MMC read/write routines
• button read, potentiometer ADC read
• OpenOCD + Eclipse set of projects 1.00 include flash write make file for STR-H711. The complete list of projects included is here.

ORDERING CODES:
		STR-H711 - assembled and tested board, includes STR711FR2T6 microcontroller
