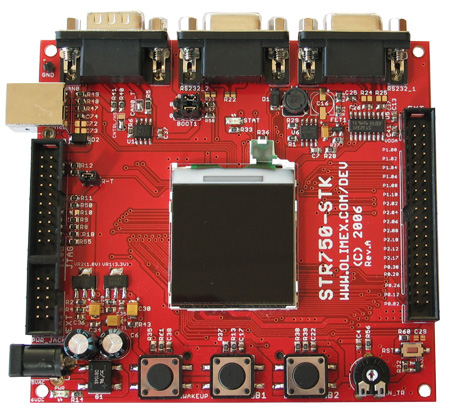

STR-750-STK DEVELOPMENT BOARD FOR STR750 ARM7TDMI-S MICROCONTROLLER

FEATURES:

• MCU: STR750
• standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
• USB 2.0 device port
• 3x RS232 interface and drivers
• 4x optoisolated inputs
• 2 RELAYS 10A/250VAC
• 3x Buttons
• Trimmer potentiometer
• NOKIA 6610 TFT COLOR LCD display 128x128 pixel 12 bit color with backlight
• UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules
• on board voltage regulators wiith up to 800mA current
• single power supply: 6-9VDC required
• power supply LED
• power supply filtering capacitor
• RESET circuit
• RESET button
• 4 Mhz crystal
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 110 x 101 mm (4.33 x 3.98")

• STR750-STK.pdf

• STR750-STK Schematic

• Jim Lynch's NOKIA 6610 LCD tutorial
• OpenOCD + Eclipse set of projects 1.00 include flash write make file for STR-750STK. The complete list of projects included is here.

ORDERING CODES:
		STR-750STK - assembled and tested board, includes STR750 microcontroller
