STR-730-STK DEVELOPMENT BOARD FOR STR730 ARM7TDMI-S MICROCONTROLLER

FEATURES:

• MCU: STR730
• standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
• 3x CAN drivers and connectors
• 2x RS232 interface and drivers
• 4x optoisolated inputs
• 2 RELAYS 10A/250VAC
• 4x Buttons
• Trimmer potentiometer
• LCD display 16x2 with backlight
• 2x UEXT - 10 pin extension connector for Olimex addon peripherials like MP3, RF2.4Ghz, RFID etc. modules
• MOTOR PWM extension connector
• ANALOGUE extension connector
• on board voltage regulator 5V with up to 800mA current
• single power supply: 12VDC required
• power supply LED
• power supply filtering capacitor
• RESET circuit
• RESET button
• 4 Mhz crystal
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 170 x 115 mm (6.7 x 4.5")

• STR730-STK.pdf

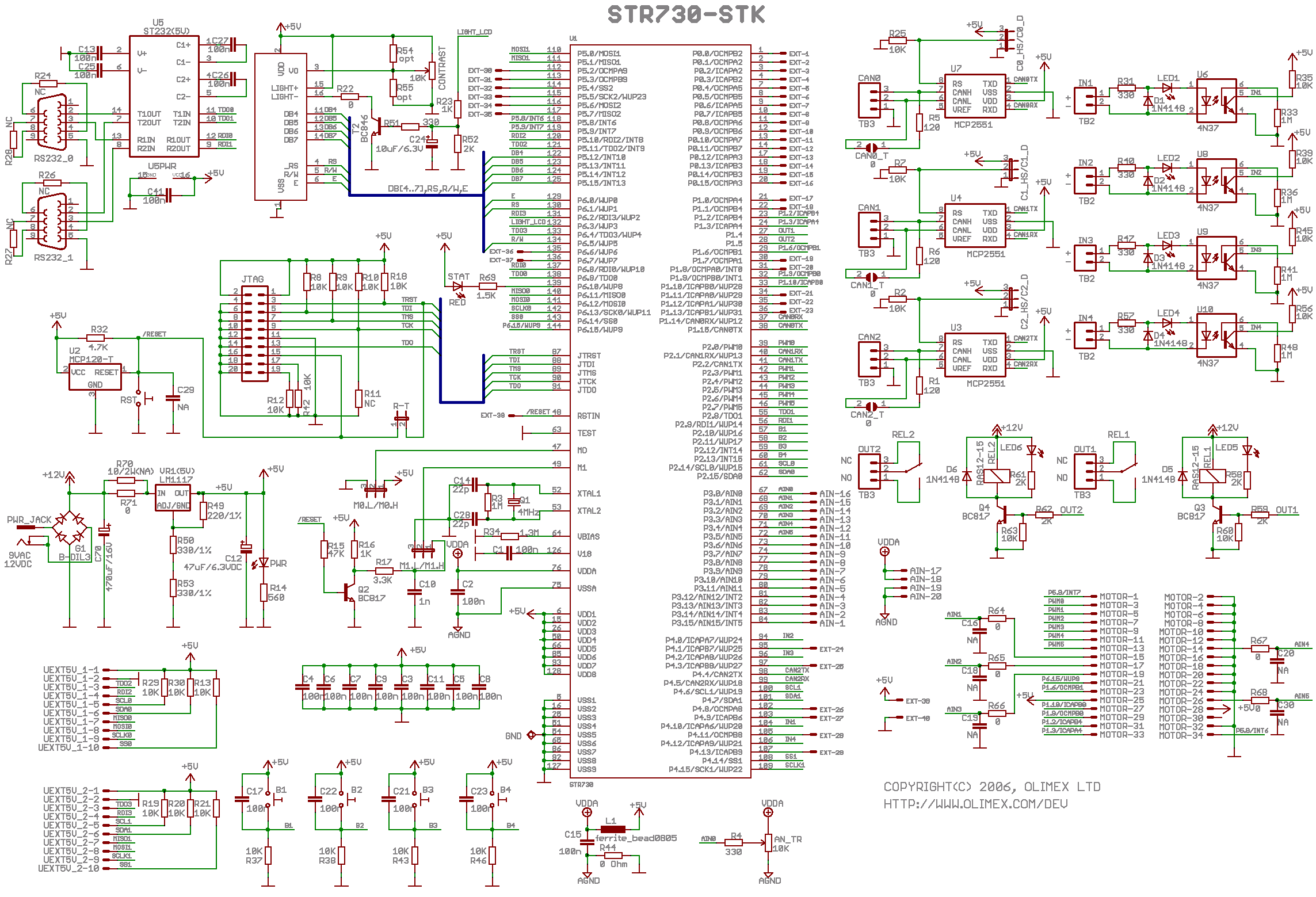

• STR730-STK Schematic

• OpenOCD + Eclipse set of projects 1.00 include flash write make file for STR-730STK. The complete list of projects included is here.

ORDERING CODES:
		STR-730STK - assembled and tested board, includes STR730 microcontroller
