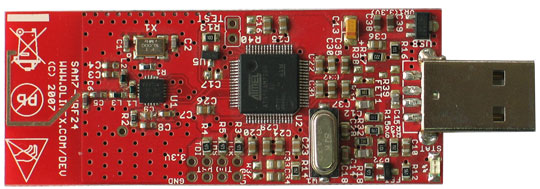

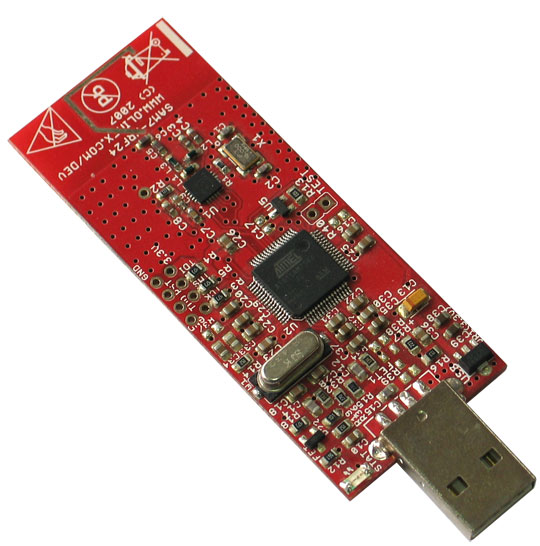

SAM7-NRF24 USB PLUGIN DONGLE WITH NORDIC NRF24L01 and AT91SAM7S64 ARM7TDMI-S MICROCONTROLLER

INFO:

SAM7-NRF24-64 is low cost board with AT91SAM7S64 and 2.4Ghz NRF24L01 transciever, it allow easy communication beteween PC with other boards which have nRF24L01 chips on them as MOD-NRF24Lx, or STM32-103STK, etc.

FEATURES:

• MCU: AT91SAM7S64 16/32 bit ARM7TDMI™ with 64K Bytes Program Flash, 16K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
• Nordic nRF24L01
• on board voltage regulator 3.3V with up to 800mA current
• power supply LED
• power supply filtering capacitor
• 18.432 Mhz crystal
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 50 x 25mm (2 x 1")

• SAM7-NRF24.pdf users manual

• SAM7-NRF24 schematic

• Demo software virtual RF COM port with Bi-directional communication between two SAM7-nRF24 USB dongles

ORDERING CODES:
		SAM7-NRF24-64 - assembled and tested board, includes AT91SAM7S64 microcontroller and Nordic NRF24L01
