INFO:

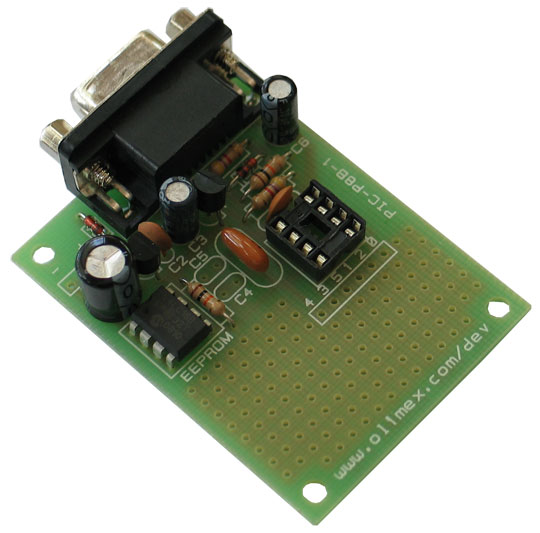

This little board measures only 4 x 6 centimeters and allow you to develop with the small 8 pin PIC devices. It have power supply, oscillator and RS232 circuit, all PIC GPIOs are available next to prototype area, EEPROM memory is also available. What you can do with this board? RS232 communication, EEPROM data logging, connecting small circuits on the prototype area like sensors, relays etc. Note that there is no ICSP connector on this board so your PIC programmer should be with socket (like PIC-PG2 or PIC-MCP, PIC-MCP-USB).

FEATURES:

• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions 43x58 mm (1,7x2,3")
• Voltage regulator 78L05 and filtering capacitors
• Ceramic resonator oscillator circuit 4Mhz
• I2C EEPROM 24LC08
• DIL8 microcontroller socket
• RS232 DB9 female connector
• RS232 interface circuit
• Extension slot 6 pins for GPIO0-GPIO5
• Gird 100 mils
• Four mounting holes 3.3 mm (0,13")

DOCUMENTS:

• PIC-P8.pdf

HARDWARE:

• PIC-P8 schematic

SOFTWARE:

• ICPROG from Bonny Gijzen is the best software for serial ports programmers we ever know. And it's FREE!
• WinPIC - Great new software by Wolfgang "Wolf" Bnscher. Supports all the popular flash PICs, as well as many of the newly released PICs! Use this software for support for the 16F628A, 16F87, and 16F88.
• WinPIC in Japanese version

CODE:

• RS232 Send/ Receive routines for PIC12F675 (C source and HEX)
• ADC read routines for PIC12F675 (C source and HEX)
• EEPROM read / write routines for PIC12F675 (C source and HEX)

ORDERING CODES:
		PIC-P8 completely assembled and tested
		PIC-P8/PCB ONLY
