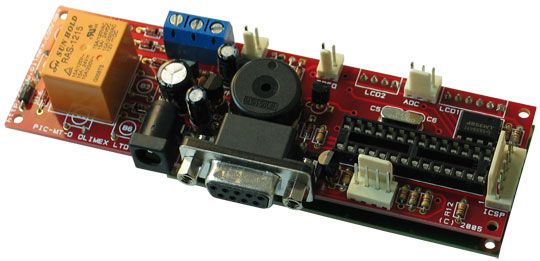

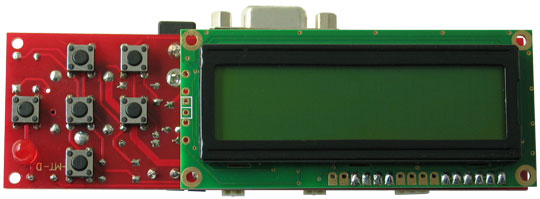

PIC-MT DEVELOPMENT BOARD FOR 28 PIN PIC MICROCONTROLLER

FEATURES:

• ICSP/ICD connector for programming with PIC-MCP-USB, PIC-MCP or PIC-PG1, PIC-PG2, PIC-PG3, PIC-PG4 and debugging with PIC-ICD2, PIC-ICD2-POCKET, PIC-ICD2-TINY(* for the PICs with ICD support) for PIC16F87X there is low cost PIC-ICD1
• Dallas touch button port
• Frequency input
• 0-10V and 0-5V ADC input with buffer OAMP
• RS232 DB9 female connector
• RS232 interface circuit with Tx, Rx signals
• RS232 TTL levels output connector
• Voltage regulator +5V, 78L05 and filtering capacitors
• Quartz crystall oscilator circuit 20Mhz
• DIL28 microcontroller socket
• Relay with 10A/250VAC contacts
• Buzzer
• Status LED on RB4
• Four mounting holes
• Power plug-in jack
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions 120x36 mm (4,7x1,4")

DOCUMENTS:

• PIC-MT.pdf
• Tutorial for how to use PIC-MT with CC5X C compiler (in Spanish) written by our Chile Distributor.

HARDWARE:

• PIC-MT schematic
• PIC ICSP connector

• Blink LED for PIC16F876 demo code (C source and HEX)
• Buzzer, relay, buttons LCD for PIC16F876 demo code (C source and HEX)
• LCD write demo code for PIC16F876 demo code (C source and HEX)
• RS232 send receive for PIC16F876 demo code (C source and HEX)

ORDERING CODES:
		PIC-MT completely assembled and tested with 20 MHz oscillator
