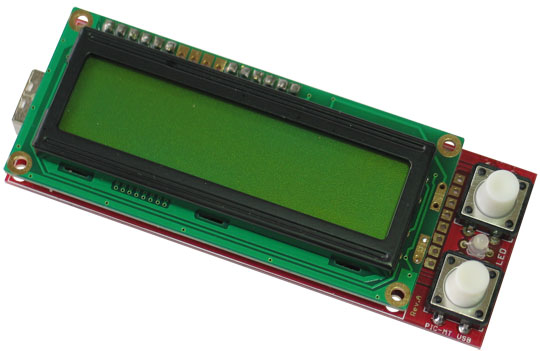

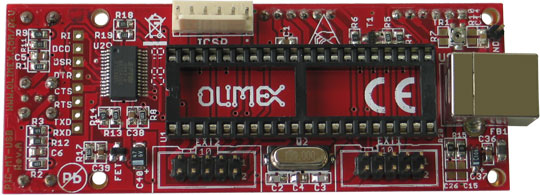

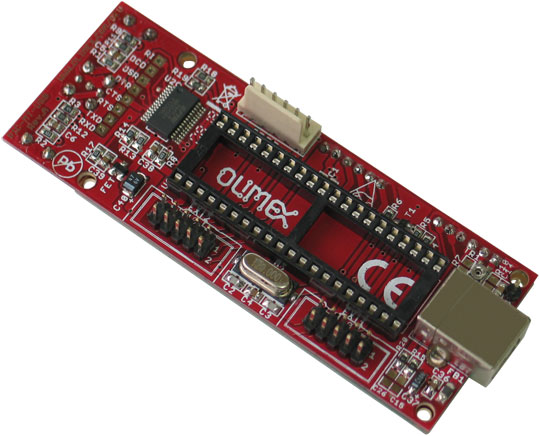

PIC-MT-USB DEVELOPMENT BOARD FOR 40 PIN PIC MICROCONTROLLER

FEATURES:

• ICSP/ICD connector for programming with PIC-MCP-USB, PIC-MCP or PIC-PG1, PIC-PG2, PIC-PG3, PIC-PG4 and debugging with PIC-ICD2, PIC-ICD2-POCKET, PIC-ICD2-TINY or is PIC16F87X microcontroller is used PIC-ICD1
• DIL-40 for PIC microcontroller
• LCD 16x2 alphanumeric display with backlight
• 2 Buttons
• bi-color LED
• Power supply taken from USB port
• Virtual USB-RS232 port
• 20 Mhz crystal
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions 95x36 mm (3,7x1,4")
• Four mounting holes
• Extension headers for PIC unused ports

DOCUMENTS:

• PIC-MT-USB.pdf - Users Manual (in development)

HARDWARE:

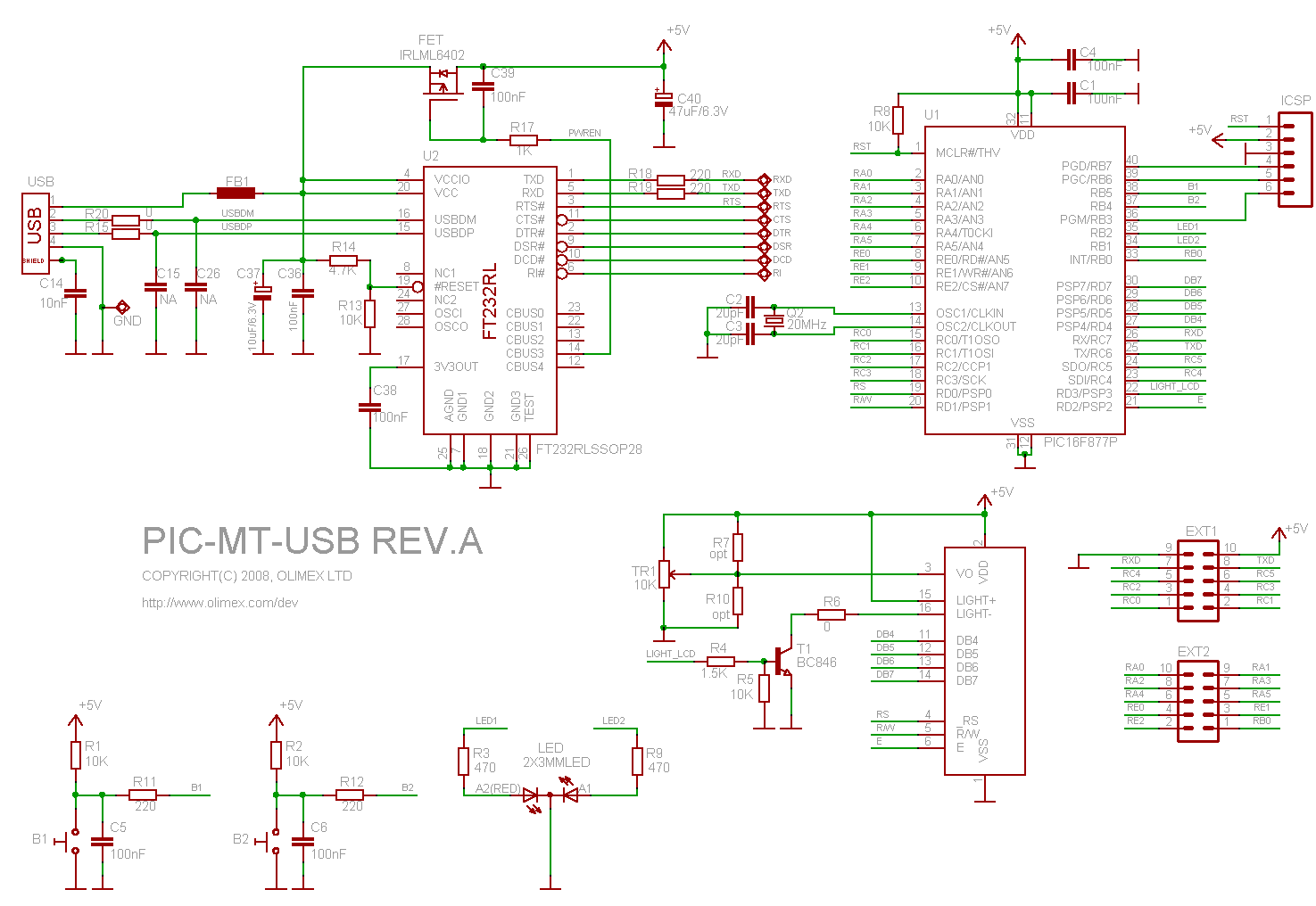

• PIC-MT-USB schematic REV.A the current one
• PIC-MT-USB schematic (old revision 0)
• PIC ICSP connector (top view)

• Blinking LED for PIC16F877 demo code (C source and HEX)
• Button read for PIC16F877 demo code (C source and HEX)
• RS232 send / receive for PIC16F877 demo code (C source and HEX)
• LCD display write for PIC16F877 demo code (C source and HEX)

ORDERING CODES:
		PIC-MT-USB Completely assembled and tested with 4 MHz oscillator (NO PIC on socket)
