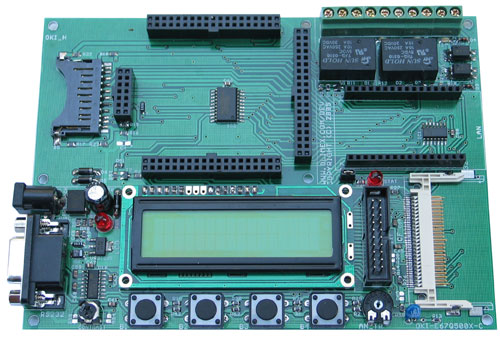

FEATURES:

• heareds to accept OKI-H5003 processor module
• SD/MMC card connector
• Compact Flash (CF) connector
• LCD 16x2 with backlight
• two Relays
• two optoisolated digital inputs
• status LED
• header to accept CS-8900A Ethernet module
• four buttons
• analog trimpot connected to ADC
• thermistor
• RS232 connector and driver
• Extension connector
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions: 160x115 mm (6.3 x 4.5 ")

• OKI-E5003.pdf
• OKI-E5003.chm

HARDWARE:

• OKI-E5003 schematic

• blink LED demo code
• SD/MMC read/write routines demo code
• CF read/write routines demo code
• LCD routines demo code
• Temperature measurement demo code
• Button, LED, Inputs demo code
• CS8900 test code
• UART routines

ORDERING CODES:
		OKI-E5003 Completely assembled and tested (note: needs separate OKI-H5003 and CS8900 header boards)
