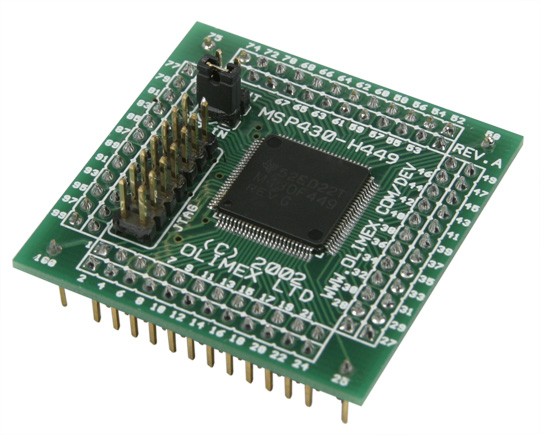

MSP430-H449 MPS430F449 HEADER BOARD

FEATURES:

• MCU: MSP430F449 with 60K Bytes Program Flash, 256 Bytes data Flash, 2K Bytes RAM
• JTAG connector
• JTAG Power_In and Power_Out jumpers
• 32 768 Hz oscillator crystal
• 8Mhz crystall oscillator (works only when power supply +3.6V)
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply filtering capacitor
• extension headers for each uC pin
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 45x45 mm (1.8x1.8")
• space between the pin rows: 43.18 mm (1.7")

DOCUMENTS:

• MSP430-H449.pdf user manual

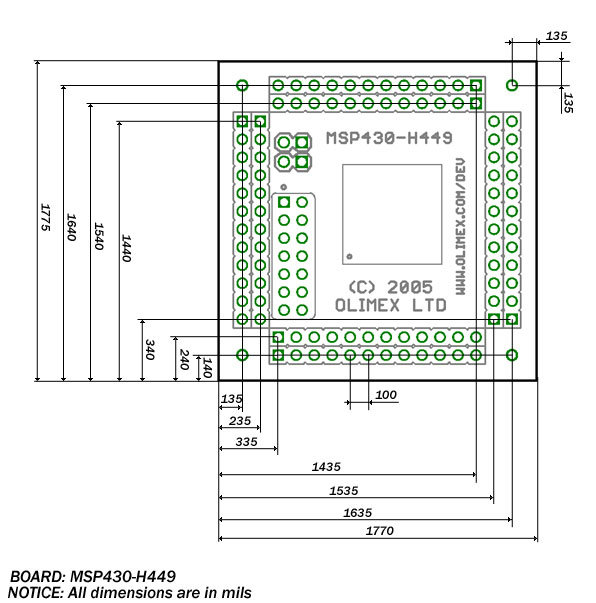

• MSP430-H449 dimensions

HARDWARE:

• MSP430-H449 schematic,
• MSP430-JTAG connector (top)


SOFTWARE:

• n/a.

ORDERING CODES:
		MSP430-H449 Fully assembled and tested with MSP430F449 microcontroller
