FEATURES:

• MCU: MSP430F1611 with 48K Bytes Program Flash, 256 Bytes data Flash, 10K Bytes RAM
• JTAG connector
• JTAG Power_In and Power_Out jumpers
• 32 768 Hz oscillator crystal
• optional high frequency crystal (socket)
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply filtering capacitor
• extension headers for each uC pin
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 48x48 mm (1.9x1.9")
• space between the pin rows: 43.18 mm (1.7")

DOCUMENTS:

• MSP430-Hxxx.pdf

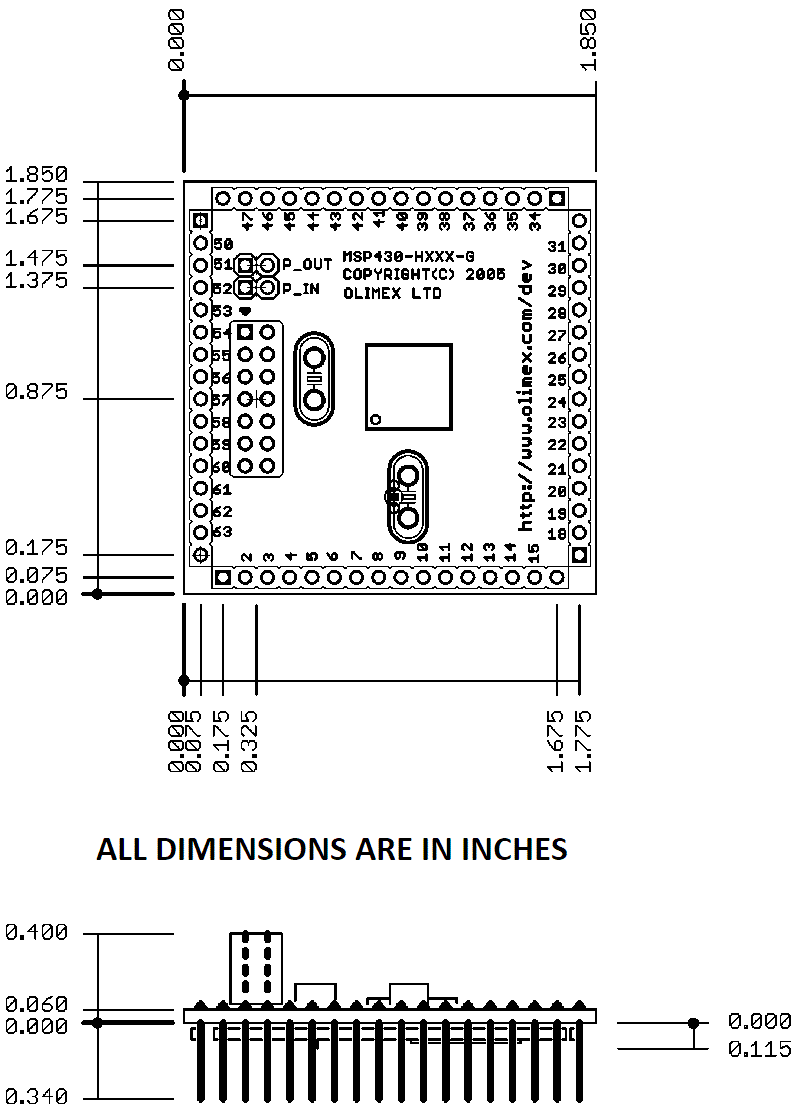

• MSP430-Hxx-dimensions.gif

HARDWARE:

• MSP430-Hxxx schematic
• MSP430-JTAG connector (top)


SOFTWARE:

• n/a.

ORDERING CODES:
		MSP430-H1611 Fully assembled and tested with MSP430F1611 microcontroller
