FEATURES:

• MSP430F149 running Andreas' open source TCPIP stack
• CS8900 LAN controller + LAN transformer and RJ45 LAN connector
• three status LEDs for the LAN
• JTAG connector for MSP430F149 programming
• low power RS232 driver MAX3232
• two extension headers for MSP320F149 ports
• 8Mhz oscillator crystall
• Dimensions: 76x60 mm (3x2.4")

DOCUMENTS:

• SLAA137 from Texas Instruments for the original MSP430-easyWeb, the original TCP/IP stack is available for download on TI web site

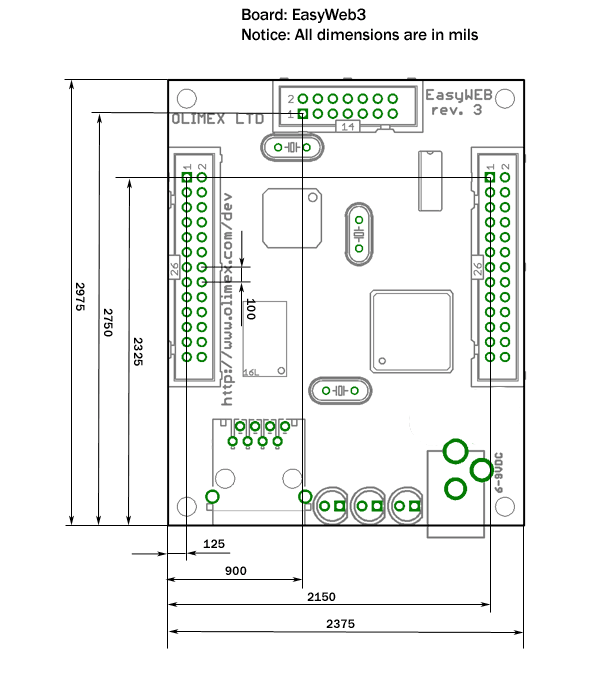

• MSP430-EasyWeb3 mechanical dimensions

• Schematic
• MSP430 JTAG connector (TOP view)

• MSP430-EasyWeb3 test software
• TCP/IP port of Adam Dunkel's uIP made by Rowley Associates, UK
• MSP430-EasyWeb3 modified by Paul Aguayo to work with new IAR EW-MSP430 version
• MSP430-EasyWeb modified by Bart van Deenen to work with MSP430GCC free compiler and changed default IP to 10.0.0.190

ORDERING CODES:
		MSP430-easyWeb Rev3 assembled and tested
		MSP430-easyWeb Rev3/PCB only bare PCB
