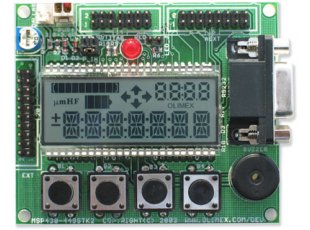

MSP430-449STK2 MPS430F449 STARTERKIT DEVELOPMENT BOARD

FEATURES:

• MCU: MSP430F449 with 60K Bytes Program Flash, 256 Bytes data Flash,2K Bytes RAM
• JTAG connector
• RS232 connector
• RS232 interface circuit with Tx, Rx signals
• Dallas touch button port
• Frequency input
• LCD custom display
• LED status
• four buttons
• Buzzer
• 2xAA 1,5 V Battery holder
• 32 768 Hz oscillator crystal
• 8Mhz crystall oscillator
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply filtering capacitor
• extension headers for uC pins
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 76.2x64 mm (3x1.2")

• MSP430-449STK2.pdf
• LCD-449STK2.pdf

HARDWARE:

• Schematic
• MSP JTAG connector (top view)

• sample LCD code provided by Muneem Shahriar
• MSP430-449STK2 test code made by our customer Peter Ivanov
• test software

ORDERING CODES:
		MSP430-449STK2 Fully assembled and tested with MSP430F449 microcontroller
