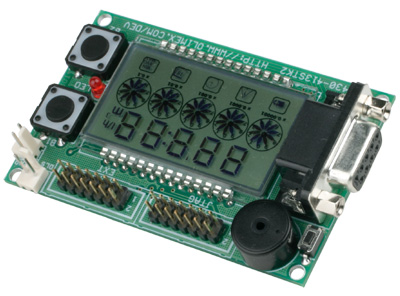

FEATURES:

• MCU: MSP430F413 with 8K Bytes Program Flash, 256 Bytes data Flash, 256 Bytes RAM
• JTAG connector
• Custom LCD panel with 5 digits, 5 decimal counters, special signs
• RS232 connector
• RS232 interface circuit with Tx, Rx signals
• Dallas touch button port
• status LED
• two buttons
• Buzzer
• CR2032 li-battery holder 3V
• 32 768 Hz oscillator crystal
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply filtering capacitor
• extension headers for unused uC pins
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 80x50 mm (3.15x1.96")

• msp430-413stk2.pdf

• Schematic
• MSP JTAG connector (top view)
• LCD pinout

• msp430-413stk.asm test software for RS232 Tx/Rx, button scan, LED, buzzer, Dallas iButton check present
• DCO calibration subroutine, useful when you need to know at what frequency MSP430 is running
• Real Time Clock subroutine - software implementation
• I2C EEPROM subroutines - 24xx eeprom subroutines
• Uart subrotine - software implementation of serial communication 9600,1,8,N

ORDERING CODES:
		MSP430-413STK2 assembled and tested, includes MSP430F413 microcontroller
