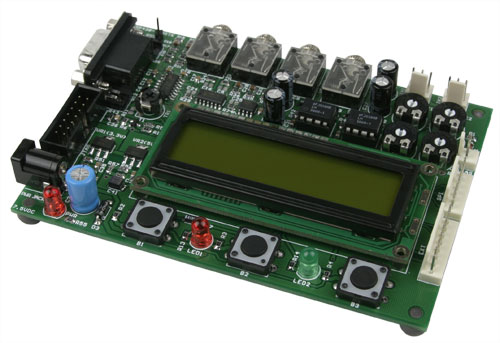

MSP430-169STK MPS430F169 STARTERKIT DEVELOPMENT BOARD

FEATURES:

• MCU: MSP430F169 with 60K Bytes Program Flash, 256 Bytes data Flash,2K Bytes RAM
• 8MB x 8 external NAND Flash memory for data storage (data logging, speech, music etc)
• LCD 16x2 display with backlight (MSP430 port controllable)
• Stereo (L-R) microphone inputs with pre-amplifier on A0, A1 ADC inputs
• Stereo (L-R) linear input with buffer pre-amplifier on A2, A3 ADC inputs
• Two trimmer potentiometers connected to A4, A5 ADC inputs (useful for volume control etc)
• Stereo (L-R) linear output on A6,A7 (DAC outputs)
• Stereo Speaker amplifier with separate volume controls L-R
• JTAG connector
• RS232 connector
• RS232 interface circuit with Tx, Rx signals
• SPI port connector
• Dallas touch button port
• Green and Red status LEDs
• Three buttons
• 32 768 Hz oscillator crystal
• 8Mhz crystall oscillator
• TEST pin pull-down
• RST/NMI pin pull-up
• power supply voltage regulators and filtering capacitor
• power supply plug-in jack for input voltage 7.5-9VDC
• extension headers for the free uC pins
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 120x84 mm (3x1.2")

• n.a.

HARDWARE:

• Schematic
• MSP JTAG connector (top view)

• board test software

ORDERING CODES:
		MSP430-169STK Completely assembled and tested with MSP430F169 microcontroller
