MSP430-169LCD MPS430F169 STARTERKIT DEVELOPMENT BOARD WITH GRAPHICS LCD, SD/MMC CARD, JOYSTICK

FEATURES:

• MCU: MSP430F169 with 60K Bytes Program Flash, 256 Bytes data Flash,2K Bytes RAM
• NOKIA 3310 LCD 84x48 pixels black & white
• Joystick with 4 directions and push button function
• SD/MMC card connector
• two LEDs: status and power
• RESET switch
• JTAG connector
• 32 768 Hz oscillator crystal
• 8Mhz crystall oscillator
• power supply voltage regulators and filtering capacitor
• extension headers for all uC pins
• PCB: FR-4, 1.5 mm (0,062"), soldermask, white silkscreen component print
• Dimensions: 67x66 mm (2.65x2.6")

• MSP430-169LCD.pdf

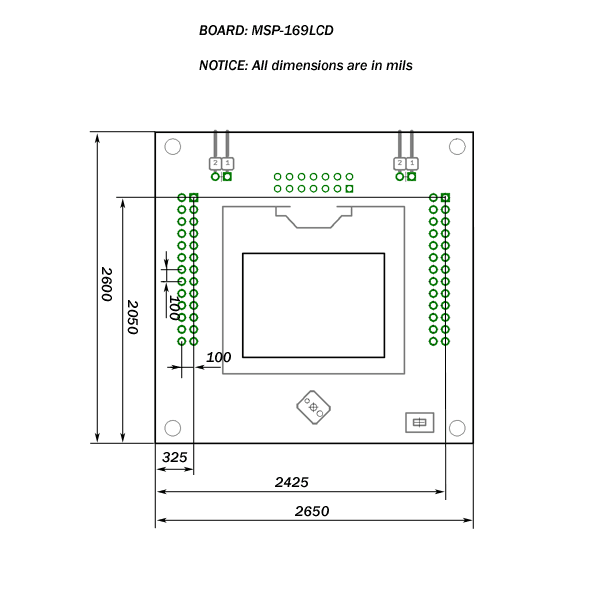

• MSP430-169LCD dimensions

HARDWARE:

• MSP430-169LCD schematic
• MSP JTAG connector (top view)

• Demo code with LCD display drive, Joystick read, SD/MMC card read/write code

ORDERING CODES:
		MSP430-169LCD Completely assembled and tested with MSP430F169 microcontroller
