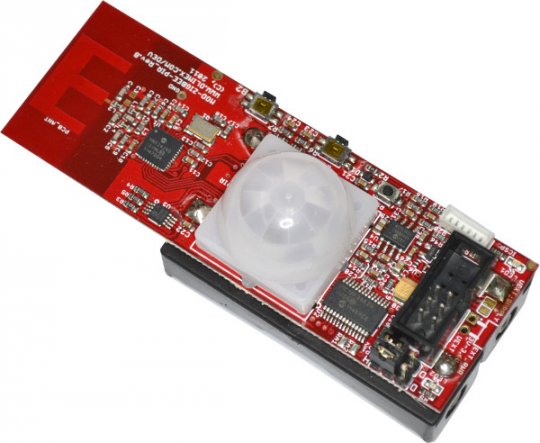

ZIGBEE PIR MOTION DETECTOR SENSOR WITH MRF24J40 AND PIC18F26K20 PROTOTYPE DEVELOPMENT BOARD

MOD-ZIGBEE-PIR ZIGBEE PIR MOTION DETECTOR PIR WIRELESS SENSOR WITH MRF24J40 AND PIC18F26K20

MRF24J40 + PIC18F26K20 with open source MiWi and Zigbee stack
PIR sensor motion detector, sends wireless alarm to Zigbee nodes when motion is detected
RF Transceiver – MRF24J40 IEEE 802.15.4™ Standard compliant 2.4 GHz RF transceiver
UEXT connector to all boards with UEXT
mini ICSP connector
On-board antenna
On-board temperature sensor – TCN75A
Option for external power supply through EXT_PWR
EXT/BAT switch
Reset circuit
two user buttons
two status LEDs
RST button

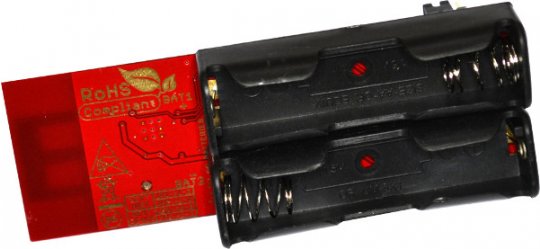

+3V lithium battery holder
PCB: FR-4, 1.00 mm (0,039"), solder mask, silkscreen component print
Dimensions: 70x20 mm (2.76x0.80")

DOCUMENTS:

HARDWARE:

SOFTWARE:

MOD-ZIGBEE-PIR demo software
MOD-ZIGBEE-PIR and MOD-ZIGBEE with PIC32-PINGUINO movement sensor example (refer to the readme and the comments in the code for more info)

ORDERING CODES:
		MOD-ZIGBEE-PIR Completely assembled and tested
