MOD-TC K-TYPE THERMOCOUPLE INTERFACE BOARD WITH MAX6675 AND UEXT

MOD-TC allow boards with UEXT connector to measure temperature with TC-K-TYPE K-type thermocouple. It have MAX6675 IC and allow temperature in range 0-1023.75C to be measured with 0.25C resolution.

FEATURES:

• Thermocouple connector
• UEXT connector
• FR-4, 1.5 mm, soldermask, component print
• Dimensions: 22x18mm (0.9 x 0.7")

• MOD-TC.pdf user manual

• MOD-TC schematic

• OLIMEXINO-STM32 demo example for read MOD-TC
• OLIMEXINO-328 demo example for read MOD-TC
• DUINOMITE demo code for read MOD-TC.

ORDERING CODES:
		MOD-TC Completely assembled and tested

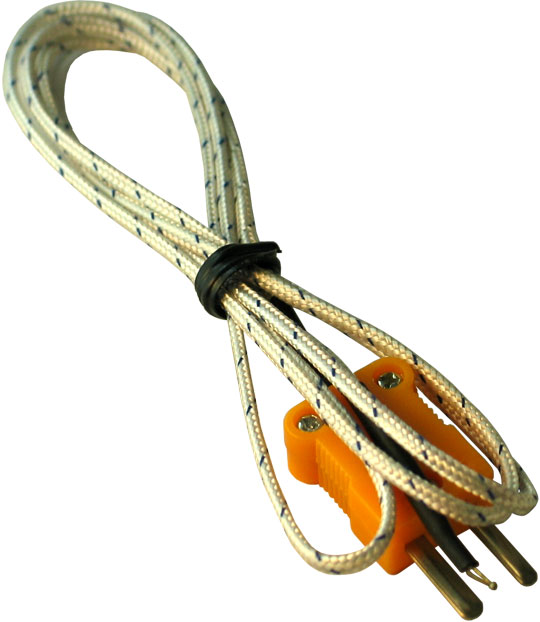

		TC-K-TYPE K-type thermocouple for MOD-TC
