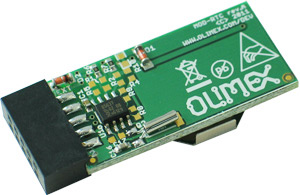

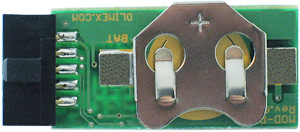

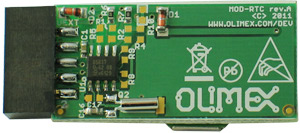

MOD-RTC REAL TIME CLOCK INTERFACE BOARD WITH PCF8536 AND UEXT

MOD-RTC add real time clock feature to boards with UEXT connector . The time keeping accuracy is tuned to 2 seconds per day, more accurate tuning is possible by adjusting the internal PCF8536 registers.

FEATURES:

• PCF8536 Real time clock
• Lithium 3V battery connector
• UEXT connector
• FR-4, 1.5 mm, soldermask, component print
• Dimensions: 40x19mm (1.57 x 0.75")

• MOD-RTC manual in pdf format

• PCF8563 datasheet in pdf format

• MOD-RTC Rev A schematic in pdf format
• MOD-RTC Rev A schematic in Eagle format released under Creative Commons Attribution-Share Alike 3.0 United States License
• MOD-RTC Rev A board in Eagle format released under Creative Commons Attribution-Share Alike 3.0 United States License

• DUINOMITE firmware can use MOD-RTC with SETUP command

ORDERING CODES:
		MOD-RTC Completely assembled and tested
