FEATURES:

• MCU: MAX2000-RAX up to 20 Mhz( single clock per instruction i.e. up to 20MIPS), low power 190 uA @ 8Mhz, power supply 1.8-2.5V, 16 bit microcontroller with 64 KB Flash (10K re-programing cycles), 2KB RAM, 3x 16bit Timers, 2x UART, 1x SPI, 1-wire, build-in driver for 132 segment LCD
• JTAG connector
• 20 Mhz (on socket) and 32 768 Hz oscillator crystal
• 2x RS232 connectors, one can be used for code bootloader
• 1x SPI port on connector
• 1-wire connector
• Buzzer
• Li-io 3V battery connector on board (no RS232 power supply when using this battery)
• two buttons on ports with interrupts
• RESET button
• status LED
• power supply LED
• Two on-board power supply voltage regulators supplying +1.8-2.2-2.5V to core and +3.3V to GPIOs
• PWR_JTAG allow board to be power supplied by the JTAG (if MAXQ-JTAG-USB is used)
• power supply filtering capacitors
• extension headers for each uC pin on 0.1" row header
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions:100x80 mm (1.8x1.8")
• prototype area with GND and 3.3V bus
• power jack connecotor for AC/DC power supply

• MAXQ-P2000.chm

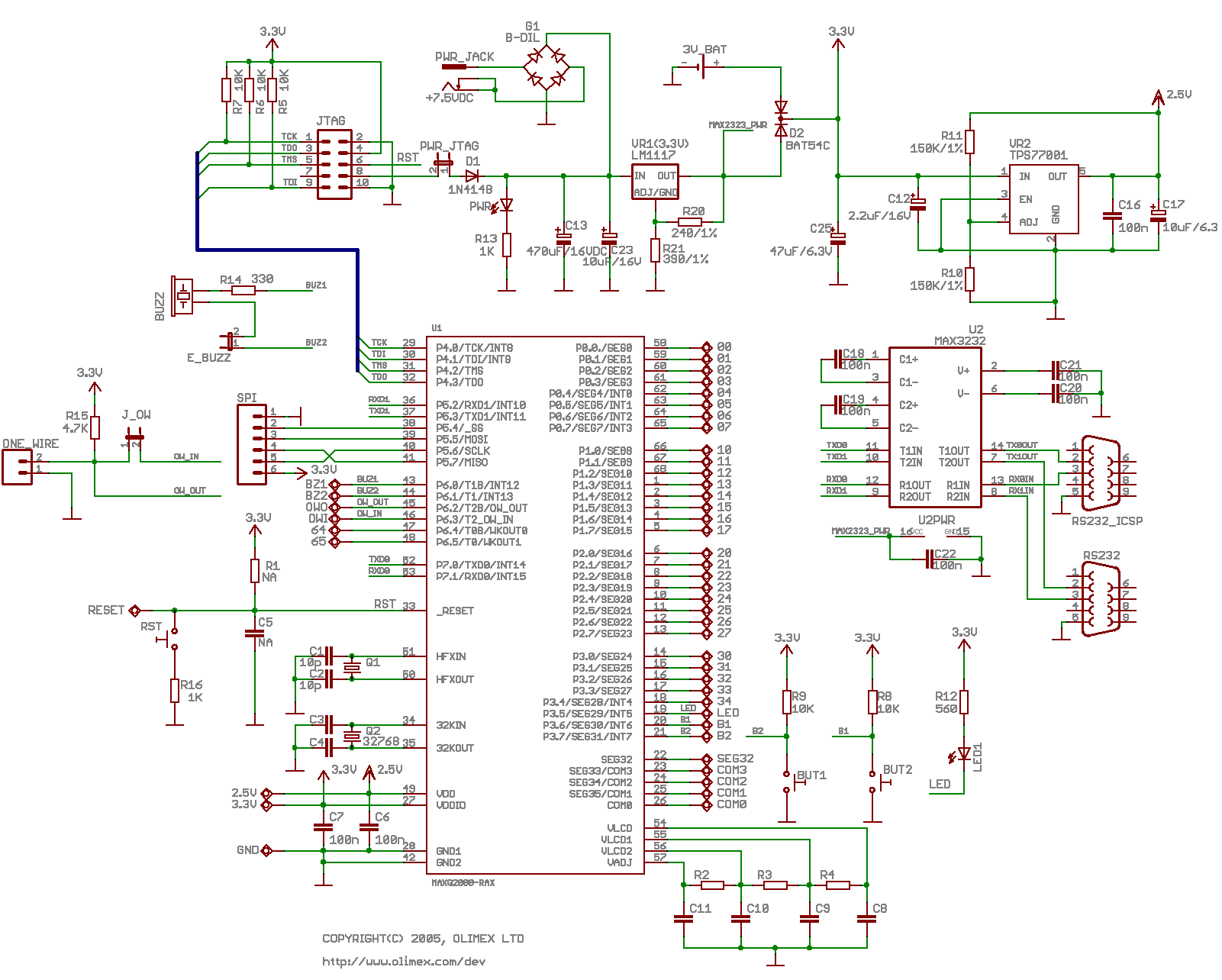

• Schematic of MAXQ-P2000
• MAXQ JTAG connector (TOP view)

• Sample C demo code for IAR EW for MAXQ for Buttons, Buzzer, UART, LED blink etc. here.
• Sample C demo code for CrossWorks for MAXQ
• Sample assembler demo code for MAXQ-IDE.

ORDERING CODES:
	MAXQ-P2000 completely assembled and tested, includes MAXQ2000-RAX microcontroller
