LPC-P2378 DEVELOPMENT PROTOTYPE BOARD WITH LPC2378 Ethernet, USB, 2x CAN, 2xRS232, ETHERNET, SD/MMC

FEATURES:

• MCU: LPC2378 16/32 bit ARM7TDMI-S™t with 512K Bytes Program Flash, 16K Bytes RAM, EXTERNAL MEMORY BUS, RTC, 4x 10 bit ADC 2.44 uS, 2x UARTs, 4x CAN, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
• standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
• Optional - TRACE connector
• Ethernet 100MBit
• RS232 port
• CAN driver and connector
• SD/MMC card connector
• UEXT connector with I2C, SPI, RS232 and power supply for connecting add-on modules like RF link, MP3, etc available from Olimex
• RESET circuit with external control of Philips ISP utility via RS232 port
• Jumpers for ISP/RUN mode
• two USER button
• RESET Button
• two on board voltage regulators 3V and 5V with up to 800mA current
• Extension port connector for many of microcontrollers pins
• single power supply: External power supply, USB or JTAG connector
• Prototype area
• power supply led
• FR-4, 1.5 mm, red soldermask, component print

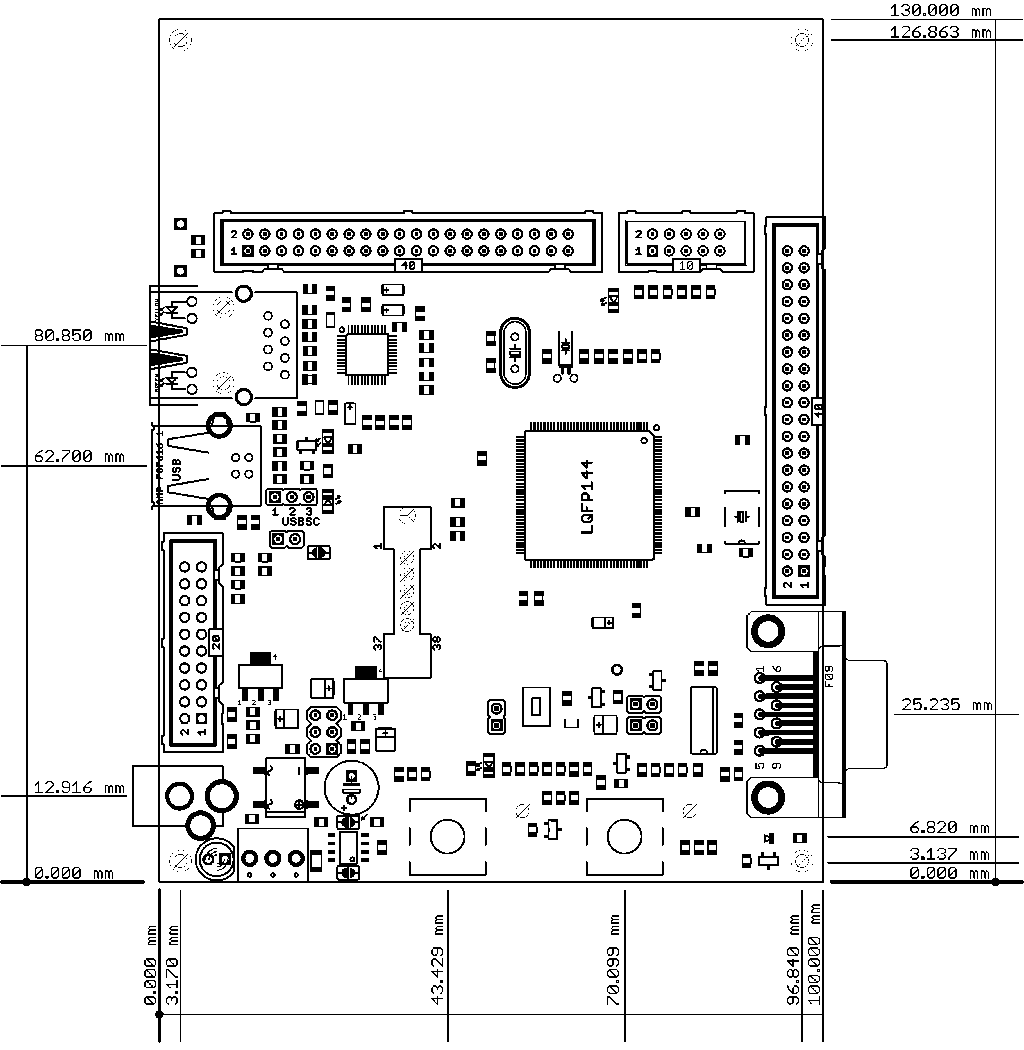

• Dimension: 100x130mm (3.94x5.12")

DOCUMENTS:

• LPC-P2378
• LPC-P2378 jumper description
• Step by Step instructions for loading HEX in LPC-P2378

• LPC-P2378 schematic REV. A1

• LPC-P2378 blink LED with Eclipse/GCC project
• LPC-P2378 USB HID class audio device (EW-ARM project and complete source code)
• LPC-P2378 USB HID mouse device (EW-ARM project and complete source code)
• LPC-P2378 USB mass storage device (EW-ARM project and complete source code)
• LPC-P2378 Virtual COM port device (EW-ARM project and complete source code)
• LPC-P2378 uIP web server complete (EW-ARM project and complete source code)
• OpenOCD + Eclipse set of projects 1.00 include flash write make file for LPC-P2378. The complete list of projects included is here.
• Program your LPC-P2378 is Basic language through web interface - Jumentum open source project from Daniel Marks confirmed to work with LPC-P2378

ORDERING CODES:
		LPC-P2378 - assembled and tested board, includes LPC2378 microcontroller
		LPC-P2378-MICTOR - assembled and tested board with LPC2378 microcontroller and MICTOR TRACE connector
