LPC2000 LPC2106 LPC21xx DEVELOPMENT PROTOTYPE BOARD

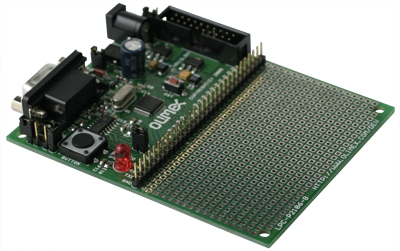

LPC-P2106 PROTOTYPE BOARD FOR LPC2106 ARM MICROCONTROLLER

FEATURES:

MCU: 16/32 bit LPC2106 with 128K Bytes Program Flash, 64K Bytes RAM, RTC, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
JTAG connector as per ARM's 2x10 pin layout, ARM-JTAG (Wiggler) compatible
extension header for uC pins
14.7456 Mhz crystal allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
RS232 interface circuit
RESET circuit
RESET button
DEBUG jumper for JTAG enable/disable
BSL jumper for bootloader enable/disable
RTCK pullup resistor
push BUTTON with pullup
status LED
Power plug-in jack
single power supply: +5-9VAC/DC required
two on board voltage regulators 1.8V and 3.3V with up to 800mA current
power supply filtering capacitor
PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
prototype PCB area with +3.3V and GND bus
Dimensions: 100x77 mm (3.9x3.05")
Four mounting holes

DOCUMENTS:

LPC-P2106.pdf
LPC-P2106.chm
ARM Cross Development with Eclipse (10MB) REV-3 very detailed tutorial by Jim Lynch how to setup and works with the free GNUARM tools ARM-JTAG and LPC2106 board. The sample codes for this tutorial is here.
ARM Cross Development with Eclipse in Spanish language (3MB) REV-1 Paul Aguayo did a great job translating to Spanish language Jim Lynch's tutorial. He also shrink the size of the document without missing the quality of the pictures and tutorial text.

HARDWARE:

SOFTWARE:

Native hardware support by eCOS the anonymous eCos CVS tree has this target inside 'p2106' eCos target . Here is the link to eCos 3.0 the anouncement . The instructions how to install eCos 3.0 on Linux and Windows
BLINK LED at P0.7 - C source code (Rowley's CrossConnect), C source code (IAR EWARM) and compiled HEX code which can be programmed with Philips' Flash ISP utility
Free RTOS port by Richard Barry for our LPC-P2106 board
Free Forth interpreter by Frank Sergeant
GCC sample codes provided by Jim Lynch for his tutorial
Button-Led demo code
RS232 UART demo code
BLINK-LED with GCC+OpenOCD+ECLIPSE
uIP1.0 demo code with LPC-P2106 and ENC28J60-H for CrossWorks written by Iain Derrington
OpenOCD + Eclipse set of projects 1.00 include flash write make file for LPC-P2106. The complete list of projects included is here.

ORDERING CODES:
		LPC-P2106 - assembled and tested board, includes LPC2106 microcontroller
