LPC-H2888 LOW COST COMPACT LPC2888 ARM7 MICROCONTROLLER HEADER DEVELOPMENT PROTOTYPE BOARD

FEATURES:

• MCU: LPC2888 16/32 bit ARM7TDMI-S™ with 1MBytes Program Flash, 64K Bytes RAM, DMA, SD/MMC controller, I2C, I2S, DC/DC convertor 0.9-1.8V allows single 1.5V cell operation, 2 32bit TIMERS, LCD controller, 10 bit general purpose ADC, stereo 16 bit ADC and DACs
• Perfect for portable players, controllers as need only one 1.5V cell to operate
• High Speed 480Mbps USB connector
• SDRAM 32MBytes
• External Flash 2MBytes
• ARM JTAG 2x10 pin connector
• RESET circuit , RESET button
• status LED
• 12 Mhz crystal
• 120 pin 0.1" extension headers for all microcontroller ports
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 55x50 mm (2.16x1.98")

• LPC-H2888 power supply jumper description
• LPC-H2888 pinout
• LPC2888 datasheets and application notes at NXP web site

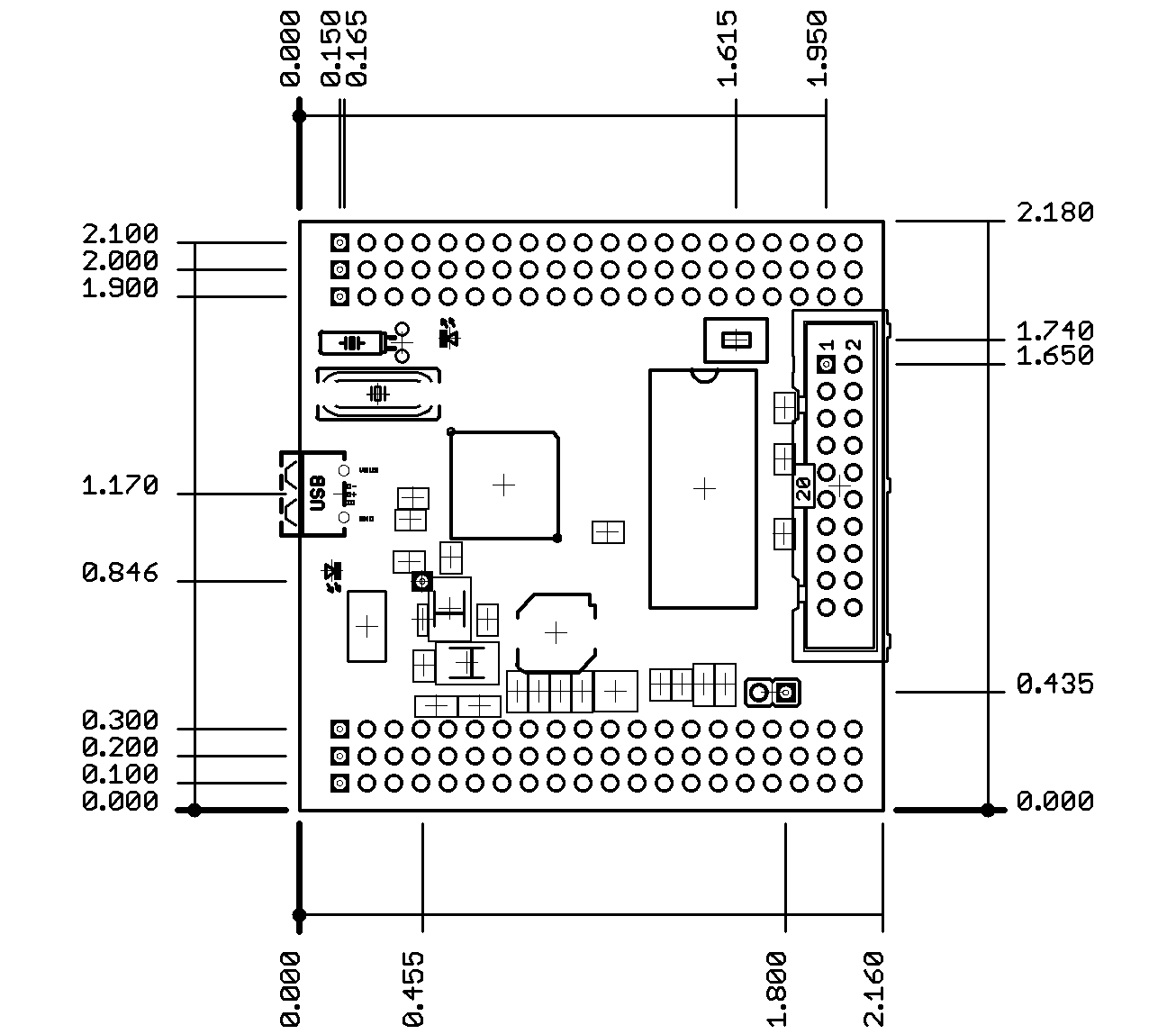

• LPC-H2888 dimensions

• ARM JTAG connector layout
• LPC-H2888 schematic

• eLua - Lua programming language project for LPC-H2888 build with GCC and OpenOCD
• Memory test, blinking LED EW-ARM 5.40 project and sources
• HighSpeedUSB example for EW-ARM 5.40 project and sources
• NXP code bundle for LPC2888 peripherials

ORDERING CODES:
		LPC-H2888 - assembled and tested board with LPC2888 microcontroller, this board have OEM price for 100+ order, please call
