FEATURES:

• ENC28J60 Ethernet controller in the world's most compact header form
• LAN connecttor with build in transformer
• two status LEDs on LAN connector
• SPI interface takes only few pins to add Ethernet interface to your microcontroller project
• 10 pin interface on 0.1" row pins header
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

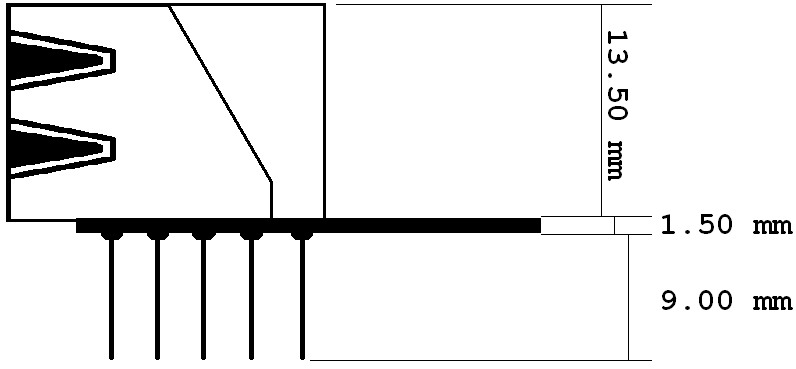

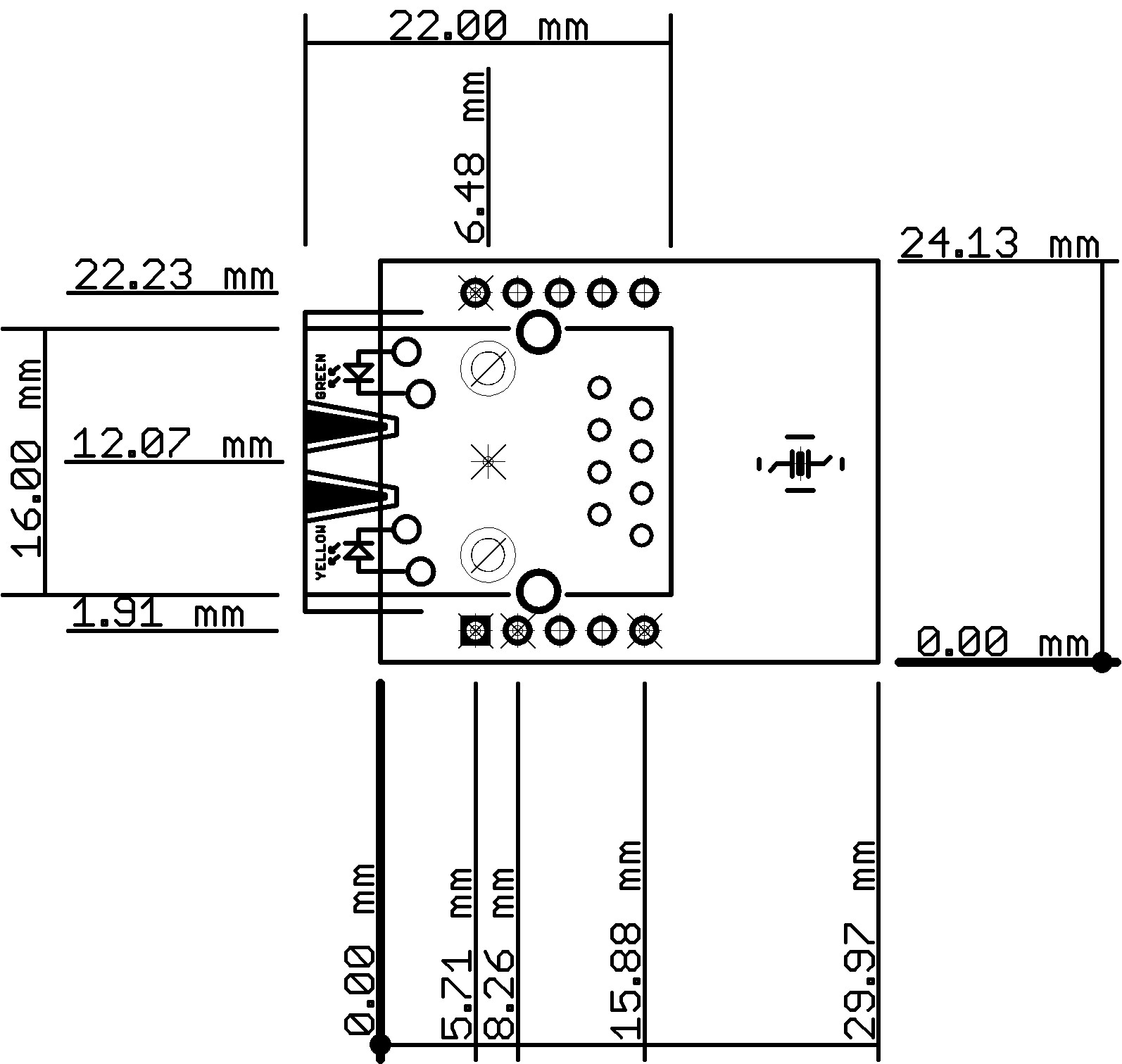

• Dimensions: 30x24 mm (1.18 x 0.95")
• space between the pin rows: 20 mm (0.8")

• ENC28J60-H.pdf

• ENC28J60-H header board schematic

• Microchip's TCP-IP stack full featured TCP-IP stack, very easy to configure and use with PIC microcontrollers.
• AVR fans now have also demo code for driving ENC28J60 with Bascom thanks to Ben Zijlstra from Netherlands
• Our development boards PIC-WEB and PIC-MINI-WEB use ENC28J60
• uIP1.0 demo code with LPC-P2106 and ENC28J60-H for CrossWorks written by Iain Derrington

ORDERING CODES:
		ENC28J60-H Completely assembled and tested, includes ENC28J60 Ethernet controller
