INTRODUCTION:

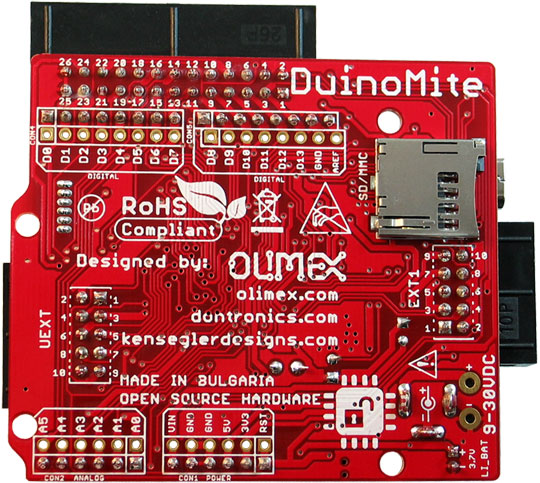

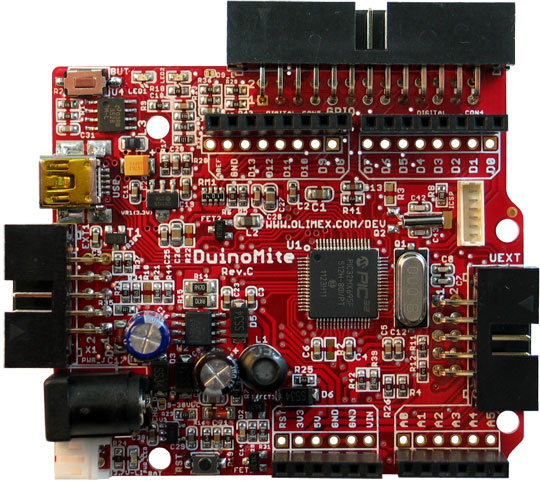

DuinoMite is a Maximite Compatible Basic computer, originally designed by Geoff Graham, with additional features and Arduino like layout. DuinoMite allow you to program in BASIC language and have VGA and Keyboard interface, so you can develop and write your code in Basic without need of any computer. You can store your code on the SD-CARD and to execute it on power up thorugh autoexec.bas main code.

FEATURES:

• PIC32MX795 microcontroller
• USB OTG allowing PIC to work as USB device and USB host and allowing Android ADK applications, interface to USB keyboards, Cameras, Printers, etc peripherials
• 10 pin IO connector for connecting VGA, Audio, Composite Video, PS-2 Keyboard
• UEXT connector for connecting different Olimex modules
• 26 pin Maximite like connector
• micro SD card connector
• 8Mhz crystal
• 32768Hz crystal for RTC implementation
• Low power design allows PIC to work in deep sleep, and peripherials to be shut down
• Automatic power source change, i.e. you can power this board by External power supply 9-30VDC, USB, or battery, the power switching is automatic.
• Arduino like format i.e. can work with Arduino shields
• Li-po charger for Lithium Polimer Battery
• Industrial temperature range design -25C+85C
• UEXT connector i.e. can work with all our modules

DOCUMENTS:

• DuinoMite Users Manual - Revision 1.03 15-12-2011 with UEXT examples, edited by Mick Gulovsen
• DuinoMite programming example
• The evolution of DuinoMite and the differences between DuinoMite and MaxiMite
• MM BASIC Quick refference manual by crackerjack
• still have questions? check ->DUINOMITE FORUM WHERE YOU CAN ASK

HARDWARE:

• DuinoMite schematic Revision C in PDF format released under Creative Commons Attribution-Share Alike 3.0 United States License
• Latest CAD files on GitHub released under Creative Commons Attribution-Share Alike 3.0 United States License

• DuinoMite Latest sources on GitHub
• Bootloader HEX and Firmware HEX on GitHub
• Duinomite drivers for virutal com port console, please read important note for the use of these.
• Duinomite firmware updater, please read important note for the use of this file.
• Alternative firmware: MaxiMite

• SPACE INVADERS Game for Duinomite with MOD-WII-UEXT-NUNCHUCK
• PACMAN Game for Duinomite with MOD-WII-UEXT-NUNCHUCK
• HOW TO run PACMAN with Duinomite boards - Step-by-step Guide
• TRS-80 emulator by Ken Segler
• Retro BSD by Sergey Vakulenko
• Space Invaders Game by Ken Segler
• Z80 Emulator runs CP-M now and the complete project is on Github by Ken Segler
• Snake retro game written in BASIC by Olimex
• Duinomite with Gameduino shield example by Ken Segler
• Measuring temperature with LM335Z by Olimex
• How Fast is Duinomite Basic? by Olimex
• Measuring temperature with KTY81.110 by Olimex


WARNING:

Do not use "programmer-to-go" button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 or that might put your microcontroller in an inrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We don't take responsibility if you brick your chip that way. For more info check the following: www.microchip.com/forums/m635420.aspx.

ORDERING CODES:
		DUINOMITE completely assembled and tested
