INTRODUCTION:

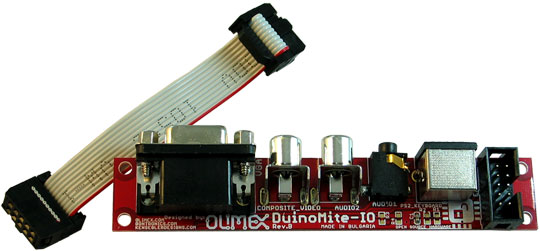

DuinoMite-IO is IO board for Duinomite Basic computer. It adds PS-2 Keyboard, VGA monitor, Composite Video, Audio output to DuinoMite.

FEATURES:

• PS-2 connector
• Audio jack 3.5 mm connector
• Composite Video and Audio for RCA jacks
• VGA monitor connector
• 10 pin IO connector for Duinomite with cable
• Small ribbon cable with IDC10 connectors on both ends

HARDWARE:

• DuinoMite-IO schematic Revision B

ORDERING CODES:
		DUINOMITE-IO completely assembled and tested
